1000A Slip Ring DHS060

Short Description:

  1. Ingiant DHS060-1-1000A high current slip ring offers single channel connection methods transmission of power and signal with 1000A large current .
  2. Small size and easy installation
  3. Can customized structural dimensions, installation method, operating temperature, protection level, current size

Product Detail

Product Tags

DHS060-1-1000A Series High Current Slip Ring Description:

Ingiant DHS060-1-1000A series high current through bore slip ring outer diameter 60mm ,1 electrical terminal and transmit 1000A high current ,fully enclosed structure, high protection level and easy to install.

Typical Applications:

1.Wind power generation-For large wind turbines, it may be necessary to handle very high currents, so 1000A-class slip rings are ideal
2.Heavy construction machinery-Heavy machinery such as excavators and cranes often require 360-degree continuous rotation of their slewing platforms or superstructures
3.Port loading and unloading equipment-Gantry cranes, container cranes and other equipment used in ports also rely on high-current slip rings to ensure uninterrupted transmission of power and signals when the spreader rotates
4.Metallurgical industry-Various rotary kilns in metallurgical plants, such as arc furnaces, also need to use high-current slip rings to transmit power to rotating parts for operations such as metal smelting.

Product Naming Method:

High Current Slip Ring

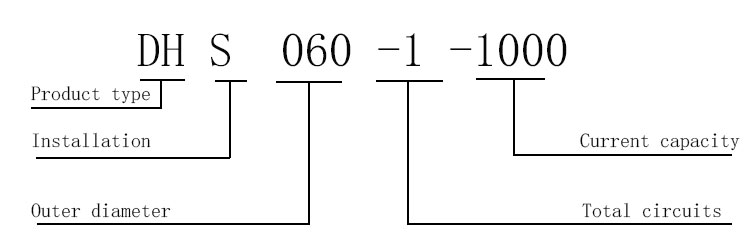

DHS060-1 Naming Description
  1. 1.Product type: Product type: DH—electric slip ring
  2. 2.Installation method: K-Through bore ,S-Solid shaft
  3. 3.Inter Diameter Number : 060-Outer diameter size 60mm
  4. 4.Circuit Number :1-1 electrical pole
  5. 5.Current Capacity :1000-1000 amp

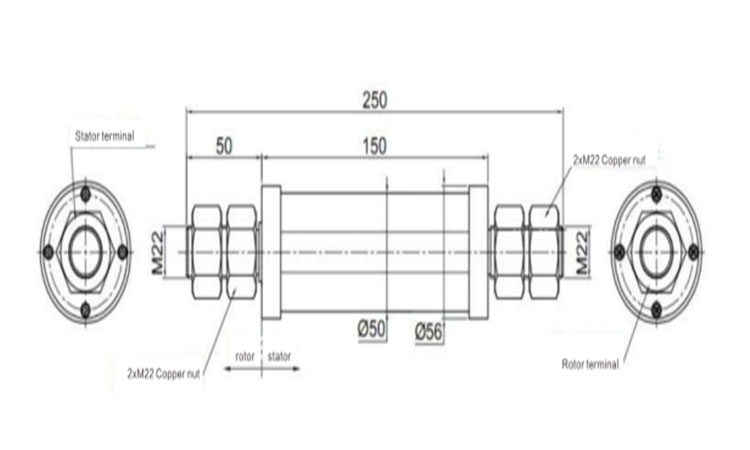

DHS060-1-1000A High Current Slip Ring Standard Drawing :

1000A Slip Ring DHS060-1 Drawing

If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you

DHS060-1-1000A High Current Slip Ring Technical Parameters:

Product Grade Table
Product grade Working speed Working life
General 0~200 rpm 20 million revolutions
Industrial 300~1000rpm 60 million revolutions
Technical Parameters
Electrical technical Mechanical technical
Parameters Value Parameters Value
Number of rings 1 Ring or Custom Working temperature -40℃~+65℃
Rated current 1000A Working humidity <70%
Rated voltage 0~440VAC/VDC Protection level IP54
Insulation resistance ≥1000ΜΩ@500VDC Shell material Aluminum Alloy
Insulation strength 1500VAC@50Hz,60s,2mA Electrical contact material Precious metals
Dynamic resistance change value <10mΩ Lead specification Colored Teflon
Working speed 0-300rpm Lead length 500mm+20mm
