2 Channel Pneumatic Rotary Joint LHS035-2Q
LHS035 Rotary Joint Description:
Ingiant DHS035 Series outer diameter 35mm ,it consists of 1-24 way with M5 Interface ,supports signal and power mixed transmission, can customize the number of ways and compact, lightweight, corrosion-resistant, stainless steel shaft and aluminum housing
Typical Applications:
Various non-standard automation equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, bonding equipment, laminating equipment, electronic semiconductor industry automation equipment; optoelectronic flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, other non-standard automation professional equipment, etc.
Product Naming Method:
1.Product type: LH—pneumatic or hydraulic slip ring
2.Installation method: S—solid shaft slip ring；K—through hole slip ring
3.Outer diameter of solid slip ring, Through hole product bore diameter
4.Number of gas-liquid passages:
Number + Q- passages number of the gas slip ring; Number + Y - passages number of the liquid slip ring
5.Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: LHS145-8Q-002 ,if there are more of this model in the future, and so on -003 , -004, etc.

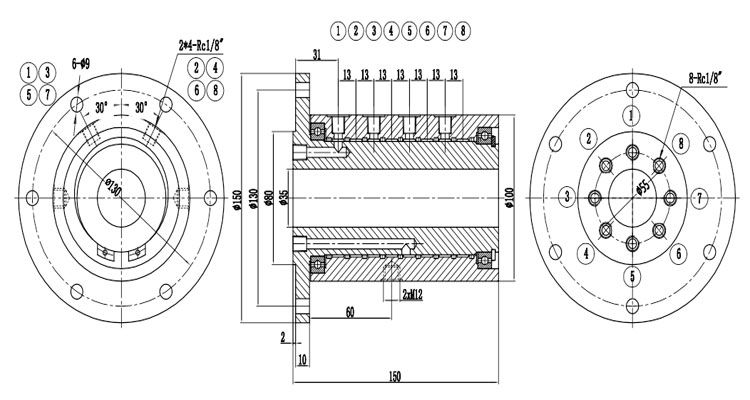

LHS035 Rotary Joint Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
LHS035 Rotary Joint Technical Parameters:
| Rotary Joint Technical Parameter | |||
| No of Channel | 2 Way or Custom | ||
| Interface Thread | M5 | ||
| Flow Hole | Φ4 | ||
| Medium | Compressed Air | ||
| Pressure | 1.1Mpa | ||
| Rotating Speed | ≤200rpm | ||
| Temperature | -30℃-+80℃ | ||
