2 Port Pneumatic-Electrical Combined Slip Ring DHS135-53-2Q

Short Description:

    1. Ingiant DHS135-53-2Q can hybrid transmission of pneumatic and electrical ,offer 53 channels of power and signal with 2 pneumatic channel .
    2. Small size and light weight
    3. Can customized lead length ,No of circuit ,transfer medium pneumatic and hydraulic  .




Product Detail

Product Tags

DHS135-53-2Q Series Pneumatic-Electrical Slip Ring Description:

Ingiant DHS135-53-2Q series pneumatic electrical slip ring outer diameter 135 mm ,it consists of 53 channels ,2A of 5 circuit ,housing material aluminum alloy ,working speed 0-300 rpm  ,small size and light weight.

Typical Applications:

Aircraft or satellite antenna control system - Processes a large number of control signals and data feedback, which is essential for real-time monitoring of complex avionics systems.
CT scanner, MRI machine - For example, in a PET-CT combination scanner, it may be responsible for providing a continuous gas flow to the radiotracer injection system to ensure accuracy during image acquisition.
Robotic arm - It can carry out power and signal transmission tasks, and can also drive small pneumatic actuators through gas interfaces to achieve functions such as grabbing and placing objects.

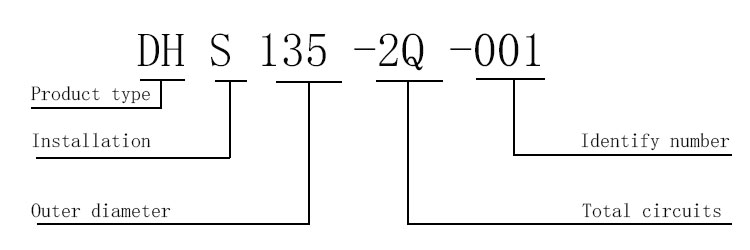

Product Naming Method:

Pneumatic electrical slip ring DHS135 naming description
  1. 1.Product type: DH— slip ring
  2. 2.Installation Method : Solid Shaft
  3. 3 Shell diameter:  Outer Diameter
  4. 4.Circuit Number: Number (number of optical channels)
  5. 5.Pneumatic type:  2Q -2 Pneumatic channel

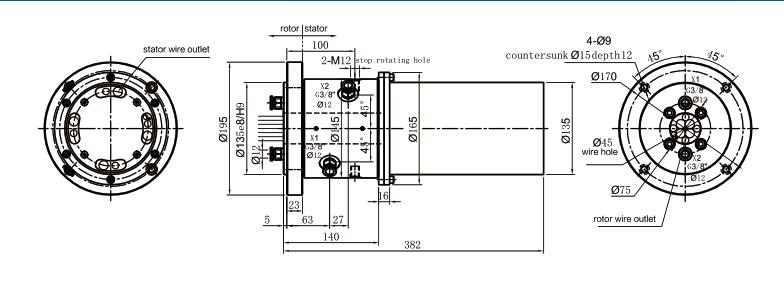

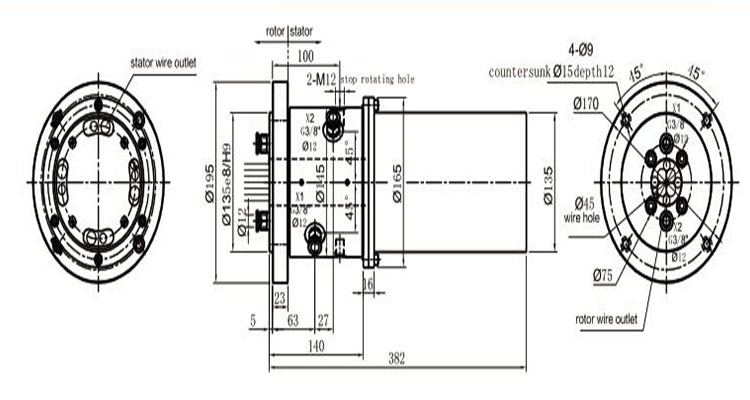

DHS135-53-2Q Pneumatic Electrical Slip Ring Standard Drawing :

Pneumatic electrical slip ring DHS135 Drawing

If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you

 DHS135-53-2Q Pneumatic Electrical Slip Ring Technical Parameters:

Hydraulic Channel Parameters
No of Channels 2 Ring or Custom
Interface Thread G3/8"
Flow Hole Φ10
Medium Compressed air
Working Pressure 1.1Mpa
Working Speed ≤30rpm
Working temperature -30℃~+80℃
Electrical technical Mechanical technical
No of Channels 53 rings or Custom Speed ​​range 0-300rpm
Rated Current 5 Circuit for 2A Protection level IP51
Rated Voltage 0-380VAC/240VDC Structural material aluminum alloy
Contact resistance variation <10mΩ Working humidity <70%
Insulation resistance 1000MΩ@1000VDC Electrical contact material Precious metal
Electrical strength 1500VAC@50Hz,60s,1mA
Working temperature -20℃~+80℃
