2 Way Pneumatic Electrical Combined Slip Ring DHS065-4-2Q

Short Description:

  1. Ingiant DHS065-4-2Q can hybrid transmission of pneumatic and electrical ,offer 4 channels of power and signal .
  2. Small size and light weight
  3. Can customized lead length ,No of circuit ,transfer medium pneumatic and hydraulic  .

Product Detail

Product Tags

DHS065-4-2Q Series Pneumatic -Electrical Slip Ring  Description:

Ingiant DHS065-4-2Q series pneumatic electrical slip ring outer diameter 065mm ,it consists of 4 channels ,2A of each circuit ,housing material aluminum alloy ,working speed 0-100 rpm  ,small size and light weight.

Typical Applications:

Remote control systems, transmission and control of digital and analog signals
Radar, antenna systems
Video surveillance systems

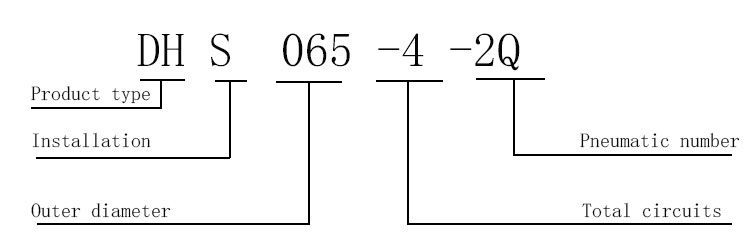

Product Naming Method:

DHS065 Pneumatic electrical slip ring drawing
  1. 1.Product type: DH— slip ring
  2. 2.Installation Method : Solid Shaft
  3. 3 Shell diameter:  Outer Diameter
  4. 4.Circuit Number: Number (number of optical channels)
  5. 5.Pneumatic type:  2Q -2 Pneumatic channel

DHS099-24-1Q Pneumatic Electrical Slip Ring Standard Drawing :

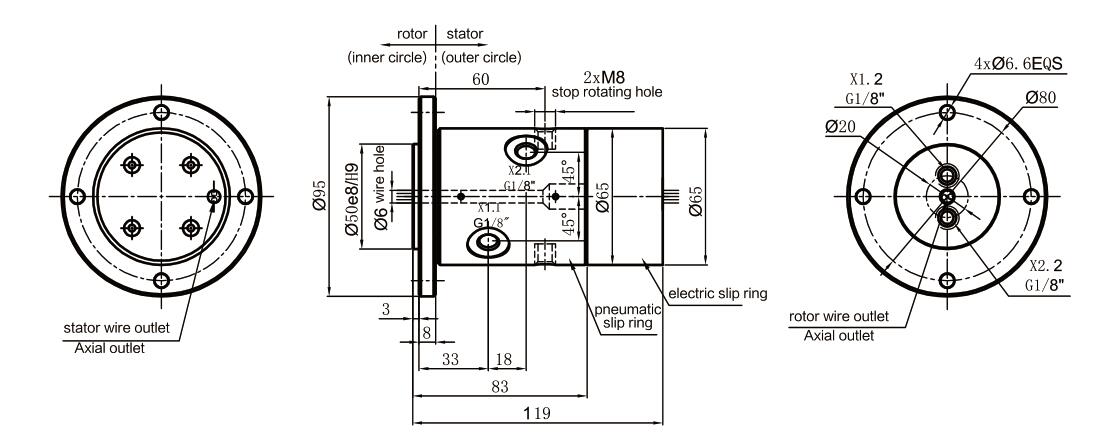

Pneumatic electrical slip ring DHS065 Drawing

If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you

 DHS065-4-2Q Pneumatic Electrical Slip Ring Technical Parameters:

Pneumatic Channel Parameters
No of Channels 2 Ring or Custom
Interface Thread G 1/8"
Flow Hole Φ6
Medium Compressed air
Working Pressure 0.7Mpa
Working Speed ≤100rpm
Working temperature -30℃~+80℃
Electrical technical Mechanical technical
No of Channels 4 Speed ​​range 0-100rpm
Rated Current 2A  2 sets of sensor signals Protection level IP51
Rated Voltage 0-440VAC/240VDC Structural material Aluminum alloy
Contact resistance variation <10mΩ Working humidity <70%
Insulation resistance ≥500MΩ@500VDC Electrical contact material Precious metal
Electrical strength 500VAC@50Hz,60s,2mA Lead specification 2A-AFP 2*0.15mm²
Working temperature -20℃~+80℃ Lead length 500mm+20mm
