4 Channel Hydraulic Rotary Joint LHS115-4Y
LHS035 Rotary Joint Description:
Ingiant DHS115 Series outer diameter 115mm support 2, 3, 4, 6, 8, 10 and 12 channels ,it uses special sealing technology for multi-channel rotary joints, suitable for vacuum and bidirectional pressure and independent flow channels. and compact, lightweight, corrosion-resistant, stainless steel shaft and aluminum housing
Typical Applications:
Industrial machine processing center, rotary table, heavy equipment tower, cable reel, packaging equipment, magnetic clutch, process control equipment, rotation sensor, emergency lighting equipment, robot, exhibition/display equipment, medical equipment, revolving door, etc.

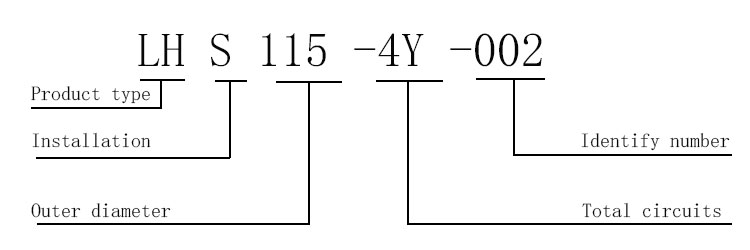

Product Naming Method:
1.Product type: LH—pneumatic or hydraulic slip ring
2.Installation method: S—solid shaft slip ring；K—through hole slip ring
3.Outer diameter of solid slip ring, Through hole product bore diameter
4.Number of gas-liquid passages:
Number + Q- passages number of the gas slip ring; Number + Y - passages number of the liquid slip ring
5.Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: LHS145-8Q-002 ,if there are more of this model in the future, and so on -003 , -004, etc.

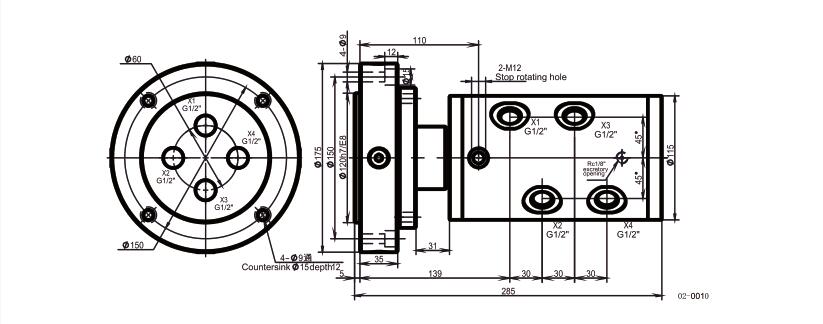

LHS035 Rotary Joint Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
LHS035 Rotary Joint Technical Parameters:
| Rotary Joint Technical Parameter | |||
| No of Channel | 4 Channel or Custom | ||
| Interface Thread | G1/2" | ||
| Flow Hole | Φ8 | ||
| Medium | Hydraulic Oil | ||
| Pressure | 21 Mpa | ||
| Rotating Speed | ≤200rpm | ||
| Temperature | -30℃-+80℃ | ||
