Customized 16 channels through hole slip ring with an inner diameter of 33mm

Short Description:

Through hole slip ring – DHK series

Support customization, product inner diameter 3-500mm, current 2-1000A



A through hole slip ring is a slip ring with a hole in the center, also known as a hollow shaft slip ring, a hole-type slip ring. The through hole slip ring can fully meet the transmission of power, signal, weak current, large current or high voltage under 360-degree unlimited continuous rotation. The main features are low torque, low electrical noise, low loss and easy maintenance.


Product Detail

Product Tags

DHK033-16-003

The main parameters

Number of circuits

16

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

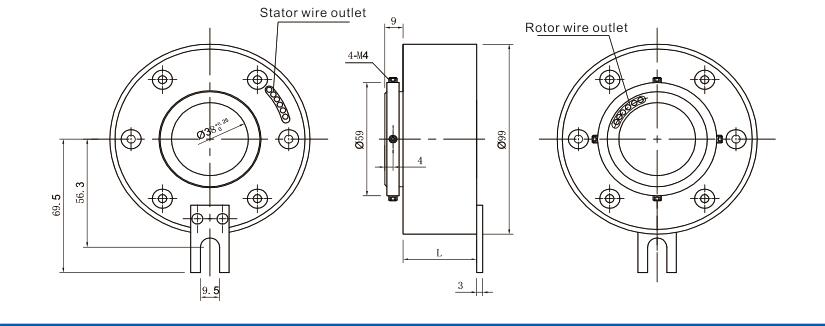

Standard product outline drawing:

DHK038

Through hole slip ring – DHK series

Support customization, product inner diameter 3-500mm, current 2-1000A



A through hole slip ring is a slip ring with a hole in the center, also known as a hollow shaft slip ring, a hole-type slip ring. The through hole slip ring can fully meet the transmission of power, signal, weak current, large current or high voltage under 360-degree unlimited continuous rotation. The main features are low torque, low electrical noise, low loss and easy maintenance.



Features

  • Able to integrate power, signal and data in a rotating transmission system without interference
  • Simultaneous transmission of temperature control signals and thermocouple signals
  • Fiber brush bundle technology ensures reliable contact and low friction coefficient
  • Adopt a more reliable all-metal shell protective structure
  • Integrated design for easy installation
  • 3-500mm aperture optional
  • Extra long life, maintenance-free

Typical applications:

  1. Industrial machines: machining centers, rotary tables
  2. Heavy equipment towers or cable reels, experimental equipment
  3. Packaging equipment, stackers, magnetic clutches, process control equipment
  4. Rotation sensors, emergency lighting equipment, robots
  5. Exhibition/display equipment, medical equipment
  6. Hotel and hotel revolving door control system

QQ图片20230322163852





Our Advantage

  1. Product advantage: Fast rotation speeds, maintenance-free design, high temperature resistance and compact dimensions are the distinguishing features of our Ingiant slip rings.
  2. Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
  3. Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales.
