DHK025-4-20A Standard 25 mm through hole conductive slip ring 4channels 20A

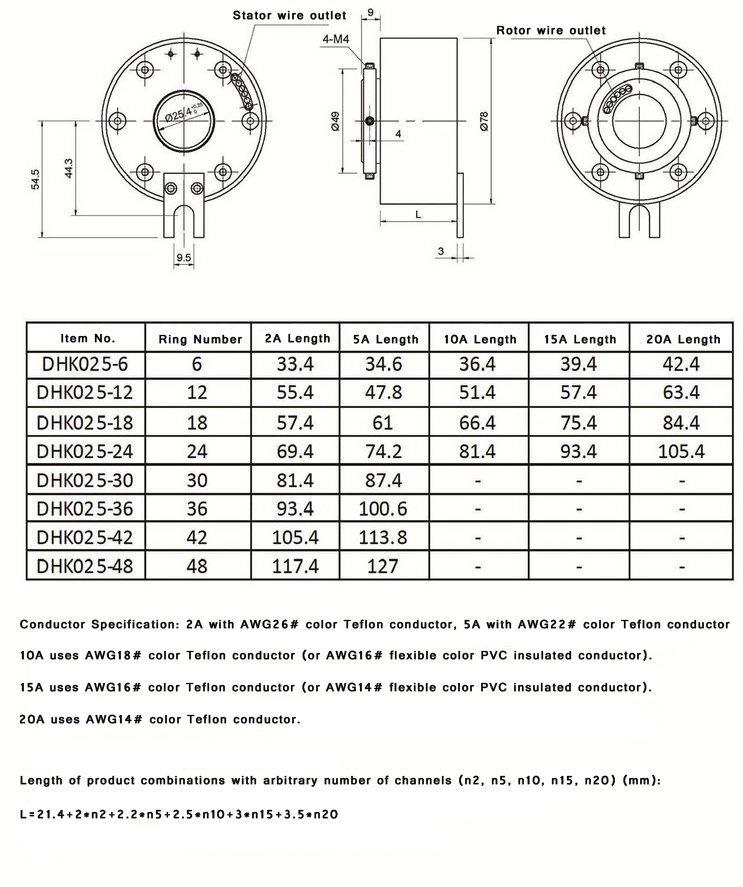

Standard product outline drawing:

Through hole conductive slip ring DHK025 series

DHK025-4-20A series through hole conductive slip ring has a middle hole of 25.4mm and an outer diameter of 78mm. It is suitable for rotating electromechanical systems with a diameter less than 25.4mm. The power is 4 channels and 20A/channel. It is also called a hollow shaft slip ring. The shell is made of special engineering plastics, and can be made of aluminum alloy or stainless steel. In order to stably transmit power or signals to electromechanical systems that require 360-degree rotation, it can also be designed in combination with air rotary joints, liquid rotary joints, fiber optic slip rings, etc. to form a multifunctional hybrid slip ring.

As precision conductive slip rings, they are widely used in intelligent visual robots, packaging machines, filling machines, blanking machines, sampling machines, small amusement machines and other automation equipment.

Features

• Multi-contact brush contact design, long service life
• Integrated structural design, easy to install
• Power ring 20A/ring
• IP 51 protection level, IP68 can be customized
• Can integrate multiple signals and be compatible with multiple data protocols
• Maintenance-free use

Typical application

• Automatic machinery                                             Cable drum
• Robot/Rotation Sensor                                         Display/Display Equipment
• Packaging machinery                                            Industrial turntable
• Medical/Pharmaceutical Equipment                 Marking Machine
• Filling machinery                                                   CNC machine tools

Our Advantage

1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
2. INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
3. Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
