DHK025 Through Bore Slip Ring

DHK025 Through Bore Slip Ring Description

Ingiant IG-DHK025 Series outer diameter 78mm and inner hole diameter 25.4mm,12 rings power passage each of 2A.it is constructed of a gold-plated ring and alloy brush, supports signal and power mixed transmission, can customize the number of circuits and current voltage based on standard models.

Typical Applications

1. 1.large LED screen rotation,
2. 2.large LED rotating advertising screen.

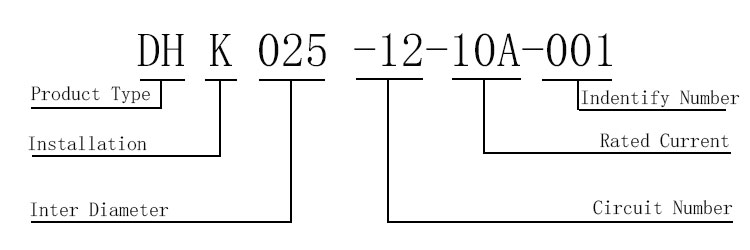

Product Naming Description

1. (1)Product type: DH—electric slip ring
2. (2)Installation method: K—through hole
3. (3)Through hole product bore diameter :025-25 mm
4. (4)Total circuits:12-12 circuit
5. (5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
6. (6) Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK025-12 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK025-12-001; if there are more of this model in the future, and so on -003 , -004, etc.

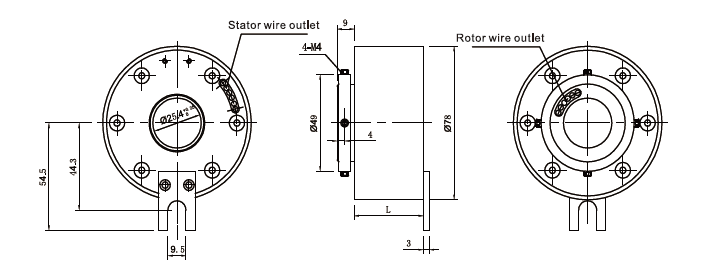

DHK025 Through Bore Slip Ring 2D Standard Drawing

If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you

DHK025 Through Bore Slip Ring Technical Parameters

Lead wire length description:
1.500+20mm (General requirement: Measure the wire length from the end face of the wire outlet hole of the inner and outer rings of the slip ring).
2.Length as required by the customer: L<1000mm, Standard L+20mm
                                                              L>1000mm, Standard L+50mm
                                                              L>5000mm, Standard L+100mm
