DHK046F-27 Ingiant through hole slip ring hole diameter 46mm 27channels
|
DHK046F-27 |
|||
|
The main parameters |
|||
|
Number of circuits |
27 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

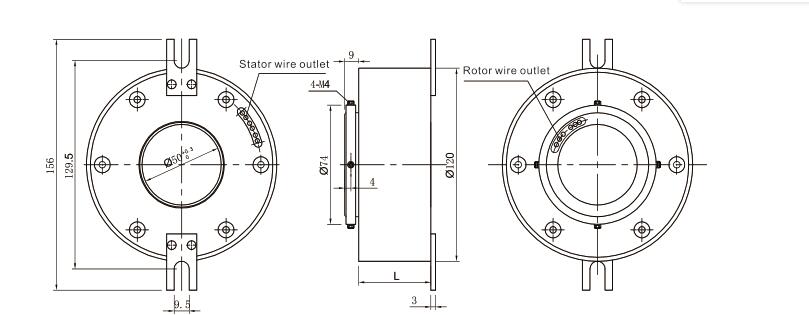

Standard product outline drawing:
The through-hole slip ring fully meets the mixed transmission of power, control and digital signals of 360-degree unlimited rotation; the through-hole slip ring adopts advanced fiber brush technology, which is maintenance-free and requires no lubricating oil; each channel has multiple points of contact, low contact pressure, and low Noise and low contact wear, long service life; standardized and modular design, complete product specifications, and can tailor-make the products required by customers.
Typical applications:
Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, testing equipment, packaging equipment, stackers, magnetic clutches, process control equipment, rotation sensors, emergency lighting, robotics, exhibition/display equipment , medical equipment, etc.
Our Advantage
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service: Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
