DHK060 standard series high-end rotating conductive hollow shaft slip ring

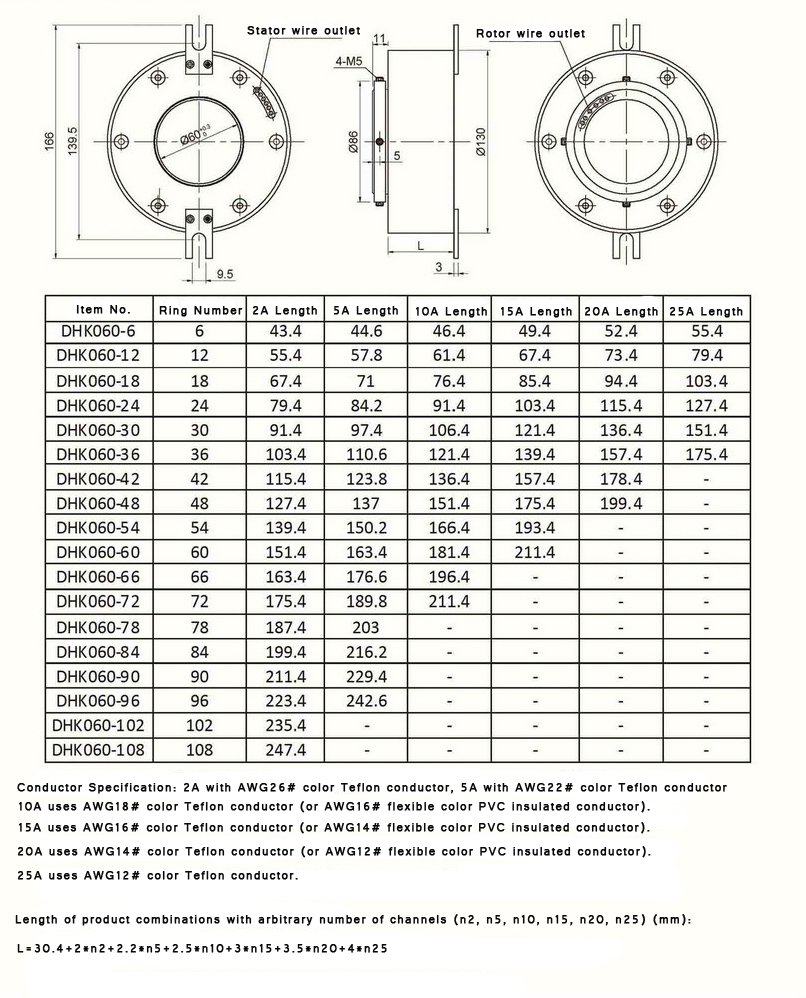

Standard product outline drawing:

      DHK060 series is a standard bore hollow shaft slip ring with a bore diameter of 60mm. It can stably transmit 1 to 108 channels of current or signals, and is suitable for any device with a rotation axis ≤ 60mm that requires 360° rotation to conduct electricity or transmit various signals.

Ingiant Technology Hollow Shaft Slip Rings:

•   Fully meets the mixed transmission of power, control and signals for 360-degree unlimited rotation, meeting the needs of multi-functional systems;
•   The hollow shaft conductive slip ring adopts advanced fiber brush multi-point contact technology, which is maintenance-free, low friction, low noise, and has a long service life;
•   It has accumulated rich design and production experience in high and low temperature, shockproof, anti-corrosion, waterproof and other application requirements, and can fully meet customers’ different transmission solutions;
•   Standardized and modular design, complete product specifications, and customized products according to customer requirements.

Typical application:

Mostly used in drying equipment (such as dryers, drying and sterilizing equipment, grain dryers, etc.), cast film equipment, and three-phase AC and DC instrument calibration Devices, amusement facilities (such as children’s ride series amusement machines, carousels), grinding and polishing machines, cranes, special security equipment, movie equipment and other devices that require 360° rotation to conduct electricity or transmit various control signals.

Our Advantage

1. Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
2. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent),  and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
3. Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
