DHK080 Through Bore Slip Ring
DHK080 Through Bore Slip Ring Description:
Ingiant DHK080 Series outer diameter 145mm and inner hole diameter 80mm,it consists of 1-120 channels integral precision conductive slip ring ,supports signal and power mixed transmission, can customize the number of circuits and current voltage based on standard models
Typical Applications:
Medical equipment, textile equipment, mining engineering machinery, plastic/silicone product production equipment, carousel amusement equipment, automated production equipment, pearl cotton (EP) polyethylene foam plastic machinery and equipment, industrial robots, educational simulation equipment, engineering testing equipment, metal surface finishing equipment, automatic polishing equipment, manipulators, paper production lines, printing machinery and equipment, dryer equipment, hot melt adhesive coating machines, continuous conveying machinery and equipment, sensors, cable production and testing equipment, etc.

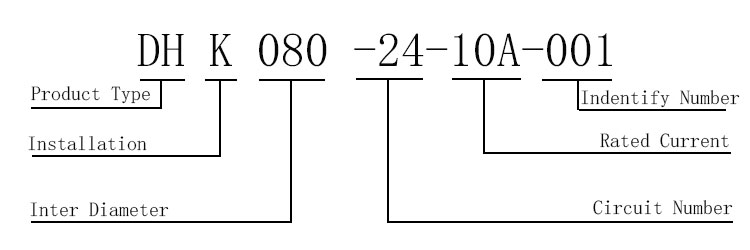

Product Naming Method:
(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter
(4)Total circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
(6) Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK040-40 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK040-40-002; if there are more of this model in the future, and so on -003 , -004, etc.

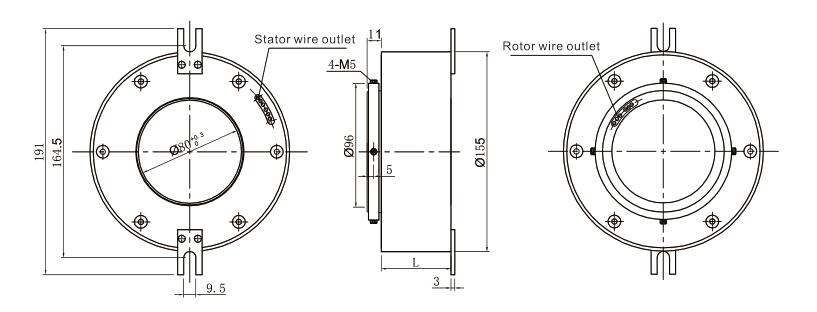

DHK080 Slip Ring 2D Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHK080 Slip Ring Technical Parameters:
| Product Grade Table | |||
| Product grade | Working speed | Working life | |
| General | 0～200 rpm | 20 million revolutions | |
| Industrial | 300～1000rpm | 60 million revolutions | |
| Technical Parameters | |||
| Electrical technical | Mechanical technical | ||
| Parameters | Value | Parameters | Value |
| Number of rings | Custom | Working temperature | -40℃～+65℃ |
| Rated current | 2A,5A,10A,15A,20A | Working humidity | ＜70% |
| Rated voltage | 0～240VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000ΜΩ@500VDC | Shell material | Aluminum Alloy |
| Insulation strength | 1500VAC@50Hz,60s,2mA | Electrical contact material | Precious metals |
| Dynamic resistance change value | ＜10mΩ | Lead specification | Colored Teflon |
| Working speed | 0-600rpm | Lead length | 500mm+20mm |
DHK080 Through Bore Slip Ring Wire Specification Table:
| Wire Specification Table | ||||
| Rated current | Wire size (AWG) |
Conductor size (mm²) |
Wire color | Wire diameter |
| ≤2A | AWG26# | 0.15 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent |
Φ1 |
| 3A | AWG24# | 0.2 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 5A | AWG22# | 0.35 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 6A | AWG20# | 0.5 | Red, yellow | Φ1.4 |
| 8A | AWG18# | 0.75 | Red, yellow, black, brown, green, white, blue, gray, orange, purple | Φ1.6 |
| 10A | AWG16# | 1.5 | Red, yellow, black, brown, green, white | Φ2.0 |
| 15A | AWG14# | 2.00 | Red, yellow, black, brown, green, white | Φ2.3 |
| 20A | AWG14# | 2.5 | Red, yellow, black, brown, green, white | Φ2.3 |
| 25A | AWG12# | 3.00 | Red, yellow, black, blue | Φ3.2 |
| 30A | AWG10# | 6.00 | Red | Φ4.2 |
| ＞30A | Use multiple AWG12# or multiple AWG10# wires in parallel | |||
Lead wire length description:
1.500+20mm (General requirement: Measure the wire length from the end face of the wire outlet hole of the inner and outer rings of the slip ring).
2.Length as required by the customer: L<1000mm, Standard L+20mm
L>1000mm, Standard L+50mm
L>5000mm, Standard L+100mm
DHK080 Series Recommend Products by Ingiant
| Item No. | Ring Number | 2A Length | 5A Length | 10A Length | 15A Length | 20A Length | 25A Length |
| DHK080-6 | 6 | 51 | 52.2 | 54 | 57 | 60 | 63 |
| DHK080-12 | 12 | 63 | 65.4 | 69 | 75 | 81 | 87 |
| DHK080-18 | 18 | 75 | 78.6 | 84 | 93 | 102 | 111 |
| DHK080-24 | 24 | 87 | 91.8 | 99 | 111 | 123 | 135 |
| DHK080-30 | 30 | 99 | 105 | 114 | 129 | 144 | 159 |
| DHK080-36 | 36 | 111 | 118.2 | 129 | 147 | 165 | 183 |
| DHK080-42 | 42 | 123 | 131.4 | 144 | 165 | 186 | 207 |
| DHK080-48 | 48 | 135 | 144.6 | 159 | 183 | 207 | 231 |
| DHK080-54 | 54 | 147 | 157.8 | 174 | 201 | - | - |
| DHK080-60 | 60 | 159 | 171 | 189 | 219 | - | - |
| DHK080-66 | 66 | 171 | 184.2 | 204 | - | - | - |
| DHK080-72 | 72 | 183 | 197.4 | 219 | - | - | - |
| DHK080-78 | 78 | 195 | 210.6 | - | - | - | - |
| DHK080-84 | 84 | 207 | 223.8 | - | - | - | - |
| DHK080-90 | 90 | 219 | 237 | - | - | - | - |
| DHK080-96 | 96 | 231 | 250.2 | - | - | - | - |
| DHK080-102 | 102 | 243 | 263.4 | - | - | - | - |
| DHK080-108 | 108 | 255 | 276.6 | - | - | - | - |
| DHK080-114 | 114 | 267 | - | - | - | - | - |
| DHK080-120 | 120 | 279 | - | - | - | - | - |
Conductor Specification:2A with AWG26# color Teflon conductor ,5A with AWG22# color Teflon conductor
10A uses AWG18#color Teflon conductor (or AWG16# flexible color PVC insulated conductor)
15A uses AWG16# color Teflon conductor (or AWG14# flexible color PVC insulated conductor)
20A uses AWG14# color Teflon conductor.
Length of product combinations with arbitrary number of channels(n2,n5,n10,n15,n20)(mm):
L=15.4+2*n2+2.2*n5+2.5*n10+3*n15+3.5*n20
