DHK090-35 Standard 90mm series through hole conductive slip ring transmission 35 channels power and signal

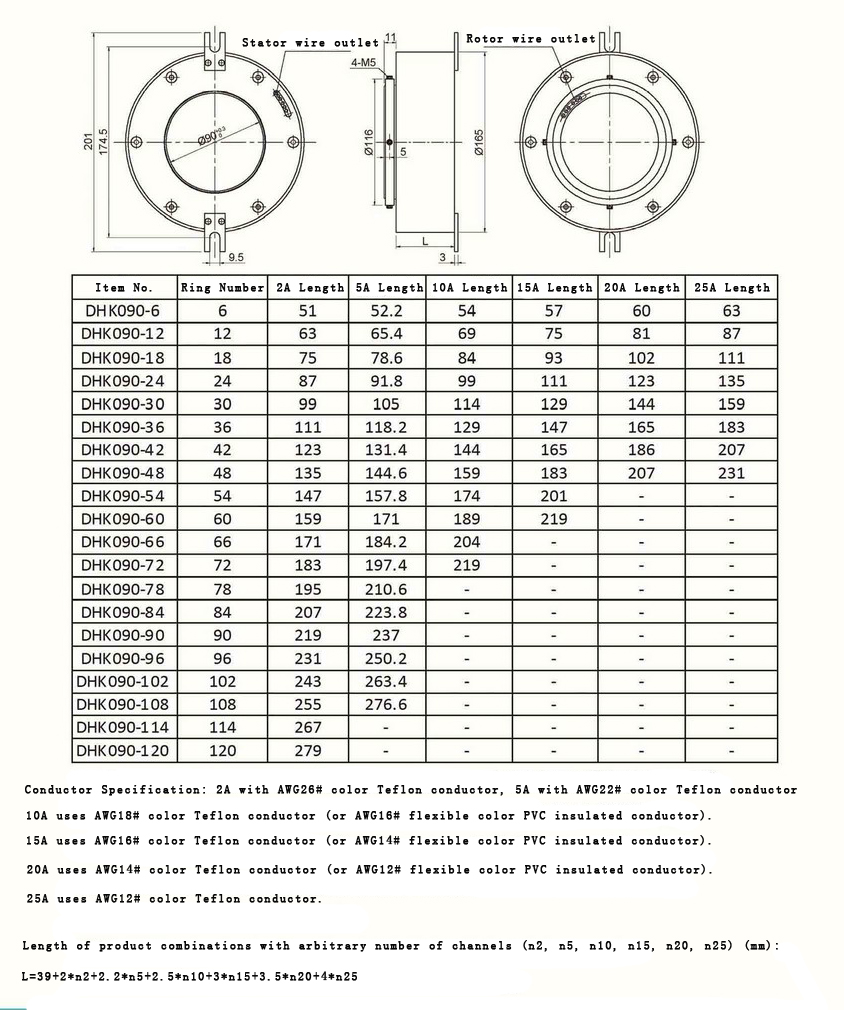

Standard product outline drawing:

DHK090 series through hole conductive slip ring, inner hole 90mm, suitable for rotating electromechanical systems with a diameter less than 90mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings, used for 360-degree rotating systems transmit power or signal. The contact material is made of precious metal + super-hard gold plating, which has small torque, stable operation, long life, small resistance fluctuation, and small contact resistance, ensuring excellent transmission performance;

Features

• Multi-contact brush contact design, long service life
• Integrated structural design, easy to install
• Power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings
• IP 54 protection level, IP68 can be customized
• Can integrate multiple signals and be compatible with multiple data protocols
• Maintenance-free use

Typical applications

• Automatic machine
• Cable reel
• Robot/Rotation Sensor
• Display/display equipment
• Packaging Machinery
• Industrial turntable
• Medical/pharmaceutical equipment
• Marking machine
• Filling machinery
• CNC machine tools

Our Advantage

1. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. We obtained ISO 9001 certification, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
2. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
