DHS060-21-1S Ingiant RF hybrid slip ring 1 channel RF + 21 channels power signal with diameter 60mm

Short Description:

1 channel RF + 21 channels power signal combination military vehicle radar RF hybrid slip ring

RF hybrid slip ring product features:

-40℃~+85℃ temperature range;

Automated production of key nodes, with extremely high reliability and consistency;

Compact structure design, smooth operation and low torque;

The surface of the ring is very smooth, with a surface roughness of <0.5μm, which avoids the phenomenon of brush filament flashing and early powder accumulation;

Low electrical noise, no electromagnetic interference, low loss, military-grade service life up to 20 million revolutions @350RPM;

Military grade adopts wear-resistant and corrosion-resistant three-level super-hard gold technology, and its hardness, strength, wear resistance and conductivity are better than the international military standards for connector contacts;


Product Detail

Product Tags

DHS060-21-1S

The main parameters

Number of circuits

21

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

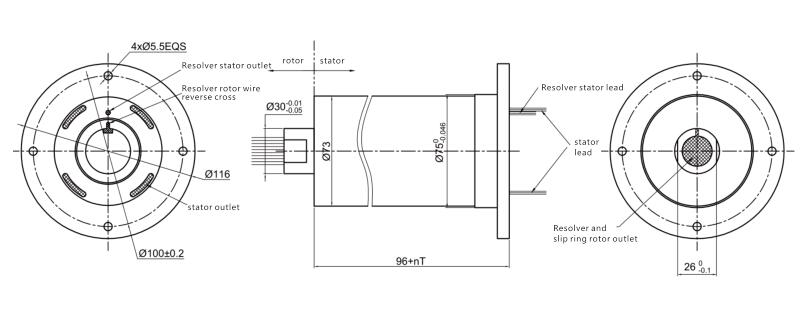

Product drawing:

DHS075-35

1 channel RF + 21 channels power signal combination military vehicle radar RF hybrid slip ring

RF hybrid slip ring product features:

  • -40℃~+85℃ temperature range;
  • Automated production of key nodes, with extremely high reliability and consistency;
  • Compact structure design, smooth operation and low torque;
  • The surface of the ring is very smooth, with a surface roughness of <0.5μm, which avoids the phenomenon of brush filament flashing and early powder accumulation;
  • Low electrical noise, no electromagnetic interference, low loss, military-grade service life up to 20 million revolutions @350RPM;
  • Military grade adopts wear-resistant and corrosion-resistant three-level super-hard gold technology, and its hardness, strength, wear resistance and conductivity are better than the international military standards for connector contacts;

 Mainly used in rotating transmission of power, signals, radio frequency signals, etc. in intelligent industry, satellite radar, communication on the move, and radar antennas.

 Transmission signal:

A variety of media combination transmissions can be integrated.
