DHS074-46-6S RF slip ring support 6 RF channels hybrid 46 channels power or signal transmission
|
DHS074-46-6S |
|||
|
The main parameters |
|||
|
Number of circuits |
46 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

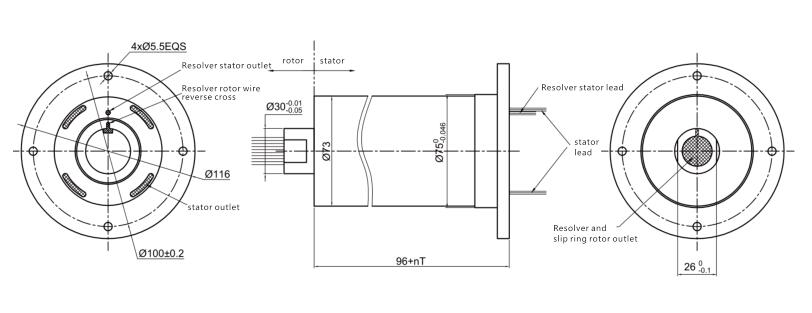

Standard product outline drawing:
RF Slip Ring – DHS074 Series
Highly customized requirements, frequency DC-4.5, DC-18, 14-14.5GHz
DHS074-46-6S RF Slip Ring supports 6 channels of radio frequency signals, and can also be mixed with communication signals, control signals, gas-liquid media, power, etc. for mixed transmission. The internal key material brushes are made of highly elastic and wear-resistant materials, and the surface of the electric ring is treated with military-grade special plating to ensure reliable transmission of high-frequency/radio frequency signals.
Features
- Frequency: DC-18GHz
- Hybrid power or signal transmission
- Low insertion loss, excellent standing wave ratio
- Support 6 RF channels
RF slip rings can also be called RF rotary joints. It is used to transmit radio frequency signals between the rotor and the stator in a rotating system. It is often used to transmit high-frequency signals, that is, high-frequency slip rings are commonly used. RF rotary joints can be divided into coaxial rotary joints, waveguide rotary joints and waveguide-coaxial rotary joints. Applications include radar antennas, military, air traffic control, space and other fields that often require receiving and transmitting multiple frequency signals.
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request
