DHS100 series 8-in-8-out photoelectric combination slip ring 49 electrical channels

Short Description:

DHS100 series 8-in-8-out photoelectric combination slip ring

It can transmit 8 optical fibers and 49 electrical channels at the same time. It is an integral precision conductive slip ring with an all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 50A, voltage 600VAC/VDC.Photoelectric combination slip rings use optical fibers as data transmission media, providing the best technical solution for data transmission between rotatingly connected system components.


Product Detail

Product Tags

DHS100-49-8F

The main parameters

Number of circuits

49

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

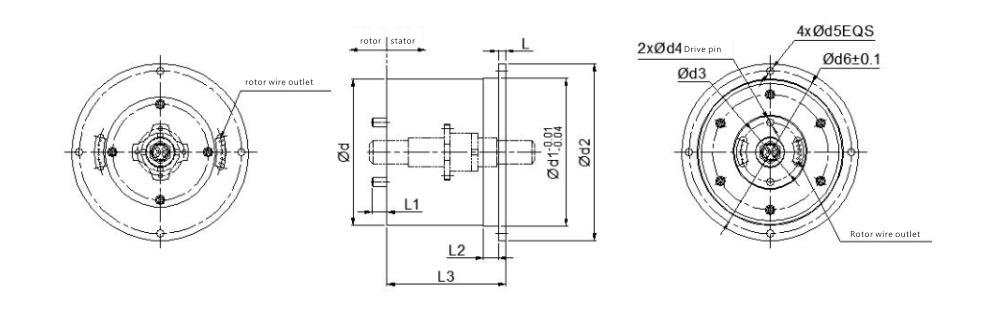

Product drawing:

DHS100-18-4F

DHS100 series 8-in-8-out photoelectric combination slip ring

It can transmit 8 optical fibers and 49 electrical channels at the same time. It is an integral precision conductive slip ring with an all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 50A, voltage 600VAC/VDC.Photoelectric combination slip rings use optical fibers as data transmission media, providing the best technical solution for data transmission between rotatingly connected system components.



Unique advantages of photoelectric combination slip rings:

  • 1. Durable in harsh environments.
  • 2. No contact, no friction, long life, up to more than 10 million revolutions (more than 100 million revolutions for a single core).
  • 3. Multi-channel technology combines multiple signals—video, serial data, and network data.
  • 4. Use optical fiber to transmit signals without leakage or electromagnetic interference; it can be used for long-distance transmission of dozens or hundreds of kilometers for networking applications.
  • 5. Combined with liquid state transfer, it can transport liquid and gas through the rotating interface.
  • 6. It is small in size and light in weight, and can be easily integrated with the original electronic bus ring, making it easy to upgrade the system.
  • 7. Can provide the world’s smallest single-channel optical fiber rotary connector, and can provide dual-channel, four-channel, five to ten-channel or even more-channel optical fiber rotary connectors.
  • 8. With pressure compensation and good sealing performance, it can be used in harsh environments such as 7,000 meters underwater and in space.
  • 9. Optoelectronic integrated rotary connectors can be provided.

Typical applications:

High-end robots, high-end material conveying systems, rotating turrets on military vehicles, remote control systems, radar antennas, optical fiber sensing and other turntables (rate tables) transmission and control of high-speed video, digital, and analog signals, medical systems, and video surveillance systems , ensuring national or international safety systems, submarine operating systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;

QQ图片20230322163852

Our advantage:

  1.  Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
  2. Company advantage:  Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
  3. customised  advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .

QQ截图20230322163935
