Electric-pneumatic hybrid slip ring 18 channels 5A electric and single channel pneumatic slip ring
|
DHS099-18-5A-1Q |
|||
|
The main parameters |
|||
|
Number of circuits |
18 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

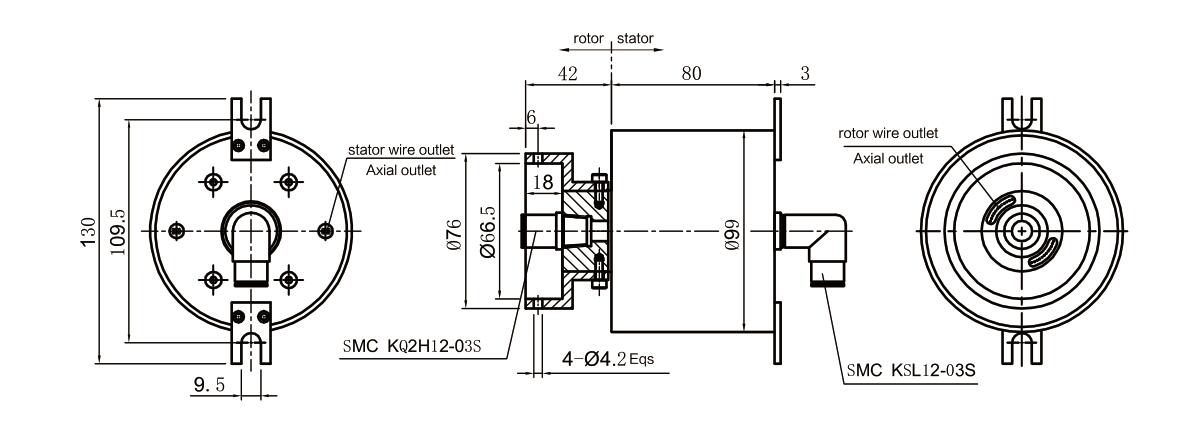

Product drawing:
Single-channel electric-pneumatic hybrid slip ring 1 inlet and 1 outlet, 18 channels 5A
DHS099-18-5A-1Q is a single-channel electric-pneumatic hybrid slip ring that can rotate 360 degrees to transmit compressed air, steam, vacuum and other gas media. Supports various tracheas of 4mm, 6mm, 8mm, 10mm, and 12mm. The single-channel 360-degree rotating vent joint can not only transmit gas, but also mix and transmit various currents from 2A to 800A. It has the advantages of small size, light weight and low torque.
Features
- Single-channel electric-pneumatic integrated slip ring
- Can mix power lines, signal lines, Ethernet, USB, industrial bus, control lines, solenoid valves, induction lines, etc.;
- The standard is flange installation, and hollow shaft installation can be customized;
- The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
