Fiber-Electric Slip Ring DHS110-42-1F
DHS110-42 Series Fiber-Electrical Slip Ring Description:
Ingiant DHS110-42 series optical fiber hybrid slip ring outer diameter 110mm,it consists of 42 channels included 4 rings for 25A,4 rings for 20A,30 rings for 4A, 4 rings for HD video signal,rated voltage 0-444VAC/240VDC ,Fully enclosed structure, optical transmission signal, no leakage, no electromagnetic interference, can customize wire length, number of loops, fiber type, fiber connector.
Typical Applications:
High-end robots, high-end material conveying systems, rotating turrets on military vehicles, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.
Product Naming Method:

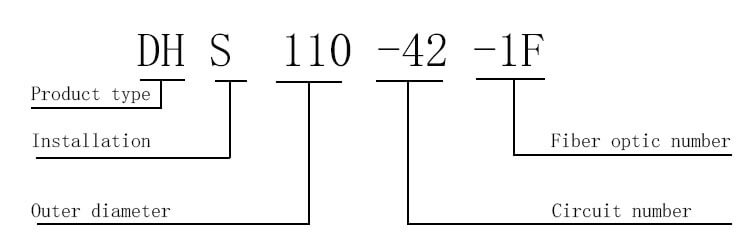

- 1. Product type: DH—electrical slip ring
- 2. Installation Method: S—solid shaft slip ring；K—through hole slip ring
- 3.Outer Diameter Number :100-outer diameter 100mm
- 4.Circuit Number : 18--Total 18 channel number
- 5.Fiber Optic Number : 4F--4 fiber optic channel
- Explain Fiber Type :
- 9/125 (single mode), 50/125 (multi-mode), 62.5/125 (multimode)
- Working wavelength: 850nm, 1310nm, 1550nm
- Pigtail: length 1.2m, S (customer specified); encapsulation - armor; connector form FC/ST/SC/LC/N=no connector; end face form PC (flat), APC (inclined)
DHS110-42-1F Fiber-electrical Slip Ring Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHS110-42 Fiber-electrical Hybrid Slip Ring Technical Parameters:
| Optical Fiber Parameters | |||
| No of Channels | 1 Ring or Custom | ||
| Wavelength | 1310nm/1550nm | ||
| Optical Fiber Type | Single Mode | ||
| Connector Type | FC | ||
| Insertion loss | ＜4dB | ||
| Housing Material | Stainless Steel | ||
| Optical Cable type | Φ3 single mode | ||
| Pigtail length | Rotor :400mm-420mm Stator :Aviation plug-JYF27466T11B01A1N | ||
| Electrical technical | Mechanical technical | ||
| No of Channels | 42 or Custom | Speed range | 0-100rpm |
| Rated Current | 25A-4 rings,20A-4 rings,4A-40rings,HD-4 rings | Protection level | IP65 |
| Rated Voltage | 0-440VAC/240VDC | Structural material | Q235A |
| Contact resistance variation | ＜10mΩ | Working humidity | ＜70% |
| Insulation resistance | ≥1000MΩ@1000VDC | Electrical contact material | Precious metal |
| Electrical strength | 1000VAC@50Hz,60s,1mA | Lead specification | Aviation plug-in AF-0.15RG3.6 |
| Working temperature | -20℃～+80℃ | Lead length | stator:500mm+20mm |
