Fiber-Electrical Hybrid Slip Ring DHS140-36-2F
DHS140-36-2F Series Fiber-Electrical Slip Ring Description:
Ingiant DHS140-36-2F series fiber electrical hybrid slip ring outer diameter 140mm ,36 power signal and 2 fiber optic signal ,rated current 15A -3 rings, 30A-2 rings,1A-31 rings ,housing material aluminum alloy ,working speed 0-100 rpm ,small size and light weight.
Typical Applications:
Remote control systems, transmission and control of digital and analog signals
Radar, antenna systems
Video surveillance systems

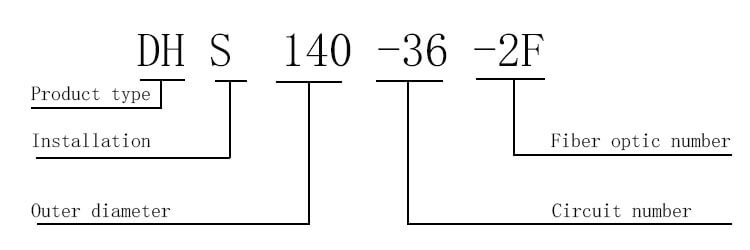

Product Naming Method:
- 1.Product type: DH— slip ring
- 2.Installation Method : Solid Shaft
- 3 Shell diameter: Outer Diameter
- 4.Circuit Number: Number (number of optical channels)
- 5.Fiber type: 9/125 (single mode), 50/125 (multi-mode), 62.5/125 (multimode)
- For example :DHS100-18-4F , solid shaft slip ring outer diameter 100mm 18 electric channel 4 fiber optic channels
DHS140-36-2F Fiber Electrical Slip Ring Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHS140 Fiber Electrical Hybrid Slip Ring Technical Parameters:
| Optical Fiber Parameters | |||
| No of Channels | 2 Ring or Custom | ||
| Wavelength | 1310nm-1550nm | ||
| Optical Fiber Type | Single Mode | ||
| Connector Type | Stator-SC/PC, Rotor-SC/PC | ||
| Insertion loss | ＜5dB | ||
| Insertion loss variation | ≤±1.3dB | ||
| Return loss | ＞45B | ||
| Pigtail length | Stator :300mm+500mm Rotor:900mm+500mm | ||
| Electrical technical | Mechanical technical | ||
| No of Channels | 36 | Speed range | 0-100rpm |
| Rated Current | 3 rings-15A,2 rings-30A,31 rings-1A | Protection level | IP51 |
| Rated Voltage | 0-440VAC/240VDC | Structural material | Aluminum alloy |
| Contact resistance variation | ＜10mΩ | Working humidity | ＜70% |
| Insulation resistance | ≥1000MΩ@1000VDC | Electrical contact material | Precious metal |
| Electrical strength | 1000VAC@50Hz,60s,1mA | Lead specification | 15A-AFP 3*0.75mm², 30A-AF 7*0.3mm² |
| Working temperature | -20℃～+80℃ | Lead length | Rotor:2500+50mm,Stator 500mm+20mm |
