Fiber Optic Rotary Joint HS-NF-003
HS-NF-003 Series Fiber Optic Rotary Joint Description:
Ingiant HS-NF-003 Series fiber length 1.1m ,bandwidth±60nm ,Fully enclosed structure, optical transmission signal, no leakage, no electromagnetic interference, can be transmitted over long distances.
Typical Applications:
High-end robots, high-end material conveying systems, rotating turrets on military vehicles, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.

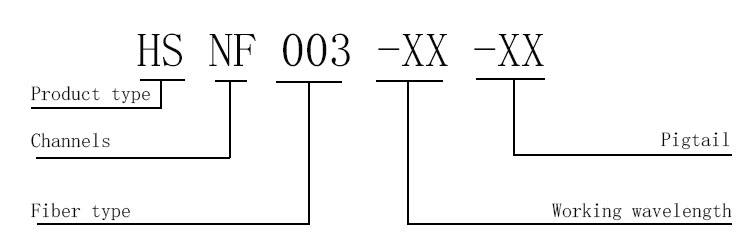

Product Naming Method:
- 1.Product type: Product type: HS—Solid shaft slip ring
- 2.channels: Number (number of optical channels) +F
- 3.Installation method: S—solid shaft slip ring；K—through hole slip ring
- 4.Fiber type: 9/125 (single mode), 50/125 (multi-mode), 62.5/125 (multimode)
- 5.Working wavelength: 850nm, 1310nm, 1550nm
- 6.Pigtail: length 1.2m, S (customer specified); encapsulation - armor; connector form FC/ST/SC/LC/N=no connector; end face form PC (flat), APC (inclined)
- For example :HS-3F-50/125-s-Φ2.0K-FC/PC
HS-NF-003 Fiber Optic Rotary Joint Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
HS-NF-003 Fiber Optic Rotary Joint Technical Parameters:
| Technical Parameters | |||
| Fiber Optic technical | Mechanical technical | ||
| Parameters | Value | Parameters | Value |
| Number of rings | 2 Ring or Custom | Withstand tension | ≤12N |
| Bandwidth | ±60nm | Maximum speed | 300rpm |
| Wavelength range | 850～1550nm | Estimated life | ＞100 million rpm |
| Maximum insertion loss | ＜3.5dB | Working temperature | -20～＋60℃ |
| Insertion loss fluctuation | ＜1.5dB | Storage temperature | -45～85℃ |
| Return loss | ≥40dB | Weight | 185g |
| Withstand power | ≤23dBm | Vibration and shock standard | GBJ150 |
| Fiber Type | 9/125 Single Mode | Protection level | IP54 (IP65 ,IP67 Option) |
