Flange Slip Ring DHS025
DHS025 Micro Flange Slip Ring Description
Ingiant DHS025 Series outer diameter 25mm ,it consists of 1-48 channels integral precision conductive slip ring ,supports signal and power mixed transmission, can customize the number of circuits and current voltage based on standard models
Typical Applications
UAV, stabilizer, aircraft model, small aircraft, micro robot, micro CCTV, small high-speed ball, micro PTZ, stage lighting, small measuring instruments and other industries

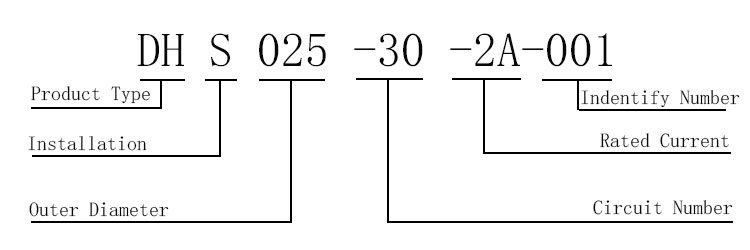

Product Naming Description
- (1)Product type: DH—electric slip ring
- (2)Installation method: S—solid shaft slip ring
- (3)Outer diameter of solid shaft slip ring:025-25 mm
- (4)Total circuits: 30-30 circuits
- (5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
- (6)Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS025-30-2A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS025-30-2A-002; if there are more of this model in the future, and so on -003 , -004, etc.

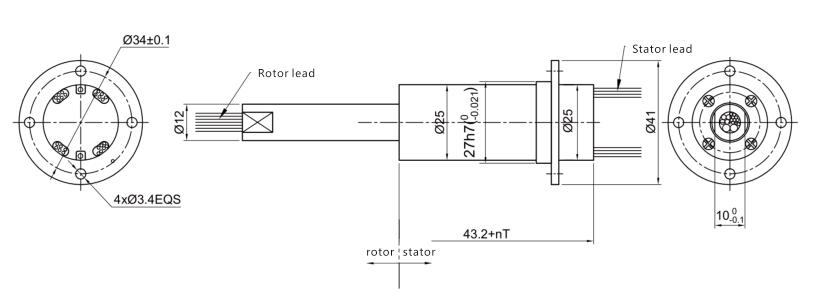

DHS025 Micro Flange Slip Ring 2D Standard Drawing
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHS025 Micro Flange Slip Ring Technical Parameters
| Product Grade Table | |||
| Product grade | Working speed | Working life | |
| General | 0～200 rpm | 10 million revolutions | |
| Industrial | 300～1000rpm | 30 million revolutions | |
| Technical Parameters | |||
| Electrical technical | Mechanical technical | ||
| Parameters | Value | Parameters | Value |
| Number of rings | 30 Ring or Custom | Working temperature | -40℃～+65℃ |
| Rated current | 8 Ring-5A, Other 2A | Working humidity | ＜70% |
| Rated voltage | 0～240VAC/VDC | Protection level | IP51 |
| Insulation resistance | ≥500ΜΩ@500VDC | Shell material | Stainless steel |
| Insulation strength | 500VAC@50Hz,60s,2mA | Electrical contact material | Precious metals |
| Dynamic resistance change value | ＜10mΩ | Lead specification | 5A with AF-0.35 mm², AF-0.15mm² |
| Working speed | 0-300rpm | Lead length | 200mm+20mm |
DHS025 Micro Flange Slip Ring Wire Specification Table
| Wire Specification Table | ||||
| Rated current | Wire size (AWG) |
Conductor size (mm²) |
Wire color | Wire diameter |
| ≤2A | AWG26# | 0.15 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent |
Φ1 |
| 3A | AWG24# | 0.2 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 5A | AWG22# | 0.35 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 6A | AWG20# | 0.5 | Red, yellow | Φ1.4 |
| 8A | AWG18# | 0.75 | Red, yellow, black, brown, green, white, blue, gray, orange, purple | Φ1.6 |
| 10A | AWG16# | 1.5 | Red, yellow, black, brown, green, white | Φ2.0 |
| 15A | AWG14# | 2.00 | Red, yellow, black, brown, green, white | Φ2.3 |
| 20A | AWG14# | 2.5 | Red, yellow, black, brown, green, white | Φ2.3 |
| 25A | AWG12# | 3.00 | Red, yellow, black, blue | Φ3.2 |
| 30A | AWG10# | 6.00 | Red | Φ4.2 |
| ＞30A | Use multiple AWG12# or multiple AWG10# wires in parallel | |||
Lead wire length description:
1.500+20mm (General requirement: Measure the wire length from the end face of the wire outlet hole of the inner and outer rings of the slip ring).
2.Length as required by the customer: L<1000mm, Standard L+20mm
L>1000mm, Standard L+50mm
L>5000mm, Standard L+100mm
