DHS030 Micro Flange Slip Ring Description:
Ingiant DHS030 Series outer diameter 30 mm ,it consists of 1-72 channels integral precision conductive slip ring ,supports signal and power mixed transmission, can customize the number of circuits and current voltage based on standard models
Typical Applications:
UAV, stabilizer, aircraft model, small aircraft, micro robot, micro CCTV, small high-speed ball, micro PTZ, stage lighting, small measuring instruments and other industries
Product Naming Method:
(1)Product type: DH—electric slip ring
（2）Installation method: S—solid shaft slip ring
（3）Outer diameter of solid shaft slip ring
（4）Total circuits
（5）The rated current or it will not be marked if it passes through a different rated current for the circuits.
（6）Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS099-36-20A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS099-36-20A-002; if there are more of this model in the future, and so on -003 , -004, etc.

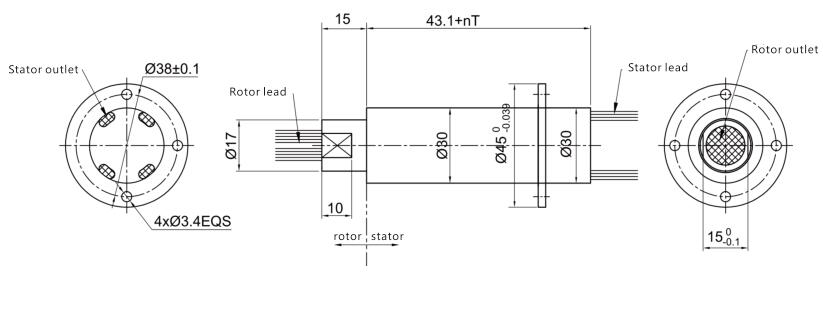

DHS030 Micro Flange Slip Ring 2D Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHS030 Micro Flange Slip Ring Technical Parameters:
| Product Grade Table | |||
| Product grade | Working speed | Working life | |
| General | 0～200 rpm | 10 million revolutions | |
| Industrial | 300～1000rpm | 30 million revolutions | |
| Technical Parameters | |||
| Electrical technical | Mechanical technical | ||
| Parameters | Value | Parameters | Value |
| Number of rings | 42 Ring or Custom | Working temperature | -40℃～+65℃ |
| Rated current | 7 Ring-10A, 2 Ring- 3A,1-Gigabit Ethernet | Working humidity | ＜70% |
| Rated voltage | 0～240VAC/VDC | Protection level | IP51 |
| Insulation resistance | ≥500ΜΩ@500VDC | Shell material | Stainless steel |
| Insulation strength | 500VAC@50Hz,60s,2mA | Electrical contact material | Precious metals |
| Dynamic resistance change value | ＜10mΩ | Lead specification | 10A with AF-0.35 mm², AF-0.25mm² |
| Working speed | 0-300rpm | Lead length | 500mm+15mm |
DHS030 Micro Flange Slip Ring Wire Specification Table:
| Wire Specification Table | ||||
| Rated current | Wire size (AWG) |
Conductor size (mm²) |
Wire color | Wire diameter |
| ≤2A | AWG26# | 0.15 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent |
Φ1 |
| 3A | AWG24# | 0.2 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 5A | AWG22# | 0.35 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 6A | AWG20# | 0.5 | Red, yellow | Φ1.4 |
| 8A | AWG18# | 0.75 | Red, yellow, black, brown, green, white, blue, gray, orange, purple | Φ1.6 |
| 10A | AWG16# | 1.5 | Red, yellow, black, brown, green, white | Φ2.0 |
| 15A | AWG14# | 2.00 | Red, yellow, black, brown, green, white | Φ2.3 |
| 20A | AWG14# | 2.5 | Red, yellow, black, brown, green, white | Φ2.3 |
| 25A | AWG12# | 3.00 | Red, yellow, black, blue | Φ3.2 |
| 30A | AWG10# | 6.00 | Red | Φ4.2 |
| ＞30A | Use multiple AWG12# or multiple AWG10# wires in parallel | |||
Lead wire length description:
1.500+20mm (General requirement: Measure the wire length from the end face of the wire outlet hole of the inner and outer rings of the slip ring).
2.Length as required by the customer: L<1000mm, Standard L+20mm
L>1000mm, Standard L+50mm
L>5000mm, Standard L+100mm
