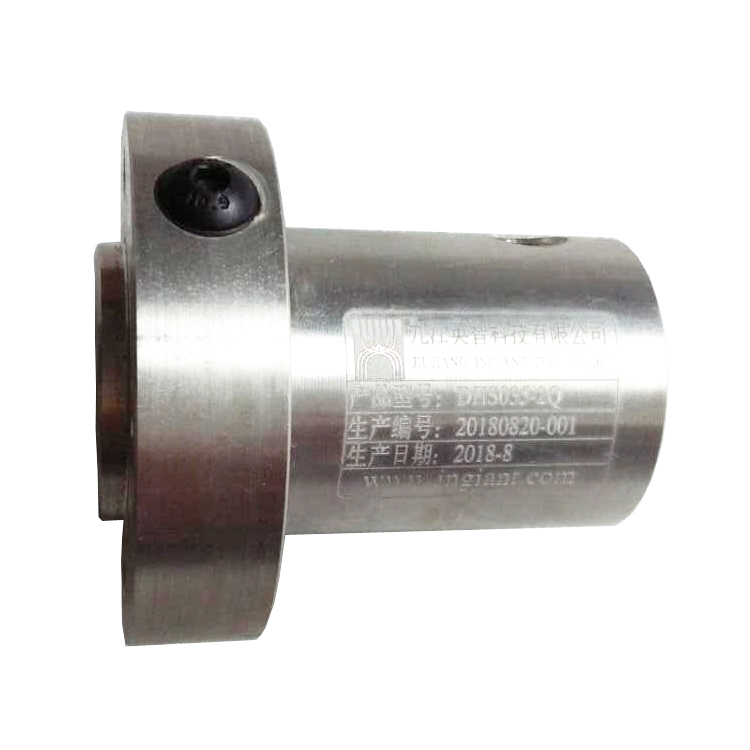

Gas-hydraulic Rotary Joint

What is Pneumatic-hydraulic Rotary Joint ?

Pneumatic-hydraulic rotary joint, sometimes also called fluid rotary joint or rotary joint, is a device specially designed to transfer liquid, gas or other media between rotating parts and stationary parts. Unlike traditional electrical slip rings, fluid and gas slip rings handle physical media rather than electricity or signals.

Pneumatic-hydraulic Rotary Joint LHS Series Main Features

1. a.Hybrid slip ring data/signal/power circuits with pneumatic and hydraulic
2. b.Compact structure

Pneumatic-hydraulic Rotary Joint LHS Series Customized Specifications

1. a.Number of electric circuits, pneumatic and hydraulic passages
2. b.cable length
3. c.Working medium and working pressure of pneumatic and hydraulic passage
4. d.Rated speed

Pneumatic-hydraulic Rotary Joint LHS Series Typical application

1. a.Medical equipment
2. b.Automatic welding machine system
3. c.Radar, antenna system
4. d.Industrial Automation Control System

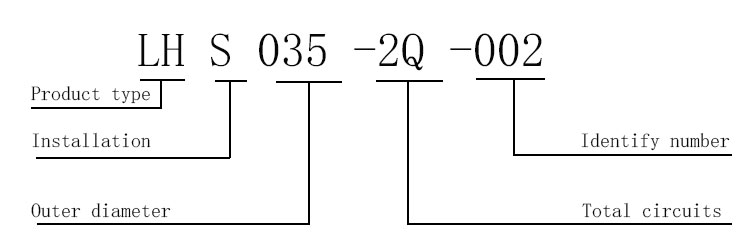

Pneumatic-hydraulic Rotary Joint LHS Series Naming description of model



1. 1.Product type: LH—pneumatic or hydraulic slip ring
2. 2.Installation method: S—solid shaft slip ring；K—through hole slip ring
3. 3.Outer diameter of solid slip ring, Through hole product bore diameter
4. 4.Number of gas-liquid passages .Number + Q- passages number of the gas slip ring; Number + Y - passages number of the liquid slip ring
5. 5..Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: LHS035-2Q-002 ,if there are more of this model in the future, and so on -003 , -004, etc.
