200A High Current Through Bore Slip Ring DHK050-5
DHK050-5-200A Series High Current Through Bore Slip Ring Description:
Ingiant DHK050-5-200A series high current through bore slip ring outer diameter 50mm ,5 electrical terminal and transmit 200A high current ,fully enclosed structure, high protection level and easy to install.
Typical Applications:
Wind turbines - capable of supporting 200A or even higher currents, the DHK050 series is very durable and reliable
Gantry Crane and Tower Crane and other equipment - the DHK050 through-hole series has good heat dissipation characteristics and a long working life
Drilling equipment, excavators and other heavy vehicles - DHK050 can be customized with a waterproof and dustproof rating of IP67 or above, making them more suitable for outdoor environments such as mining
Continuous casting machines, rolling mills and other equipment - high current through-hole slip rings for efficient production activities
Product Naming Method:

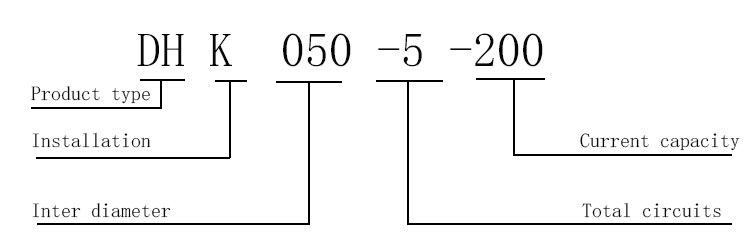

- 1.Product type: Product type: DH—electric slip ring
- 2.Installation method: K-Through bore ,S-Solid shaft
- 3.Inter Diameter Number : 050-Inter diameter size 50mm
- 4.Circuit Number :5-5 electrical pole
- 5.Current Capacity :200-200 amp

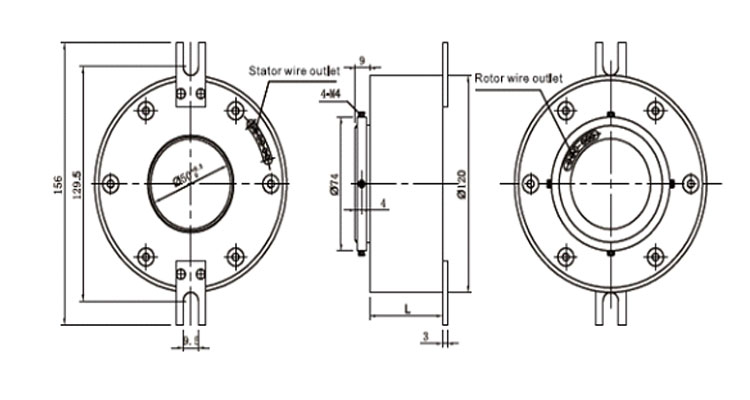

DHK050-5-200 High Current Through Bore Slip Ring Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHK050-5-200 High Current Through Bore Slip Ring Technical Parameters:
| Product Grade Table | |||
| Product grade | Working speed | Working life | |
| General | 0～200 rpm | 20 million revolutions | |
| Industrial | 300～1000rpm | 60 million revolutions | |
| Technical Parameters | |||
| Electrical technical | Mechanical technical | ||
| Parameters | Value | Parameters | Value |
| Number of rings | 5 Ring or Custom | Working temperature | -40℃～+65℃ |
| Rated current | 200A | Working humidity | ＜70% |
| Rated voltage | 0～440VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000ΜΩ@500VDC | Shell material | Aluminum Alloy |
| Insulation strength | 1500VAC@50Hz,60s,2mA | Electrical contact material | Precious metals |
| Dynamic resistance change value | ＜10mΩ | Lead specification | Colored Teflon |
| Working speed | 0-600rpm | Lead length | 500mm+20mm |
