High-precision heavy-load Pan-Tilt Head HP-HX50

Short Description:

The heavy-duty PTZ is designed to cope with heavy-load requirements and complex working conditions. It is a key device in large-scale monitoring, industrial and special operation scenarios. Its structural design is sturdy, and the main body is mostly made of high-strength steel or aluminum alloy.

a.Long life, high precision and heavy load capacity
b. Control accuracy ≤0.01°, smooth control and small jitter
c.High positioning accuracy, supports angle positioning at different speeds, and has good tracking effect
d. Support Pan&Tilt status information feedback
e. Good high and low temperature performance, wide application range
f. The surface uses PTA three-proof coating, which has strong corrosion resistance
g.The whole machine adopts super strong aluminum alloy shell, IP66 protection, rainproof and dustproof, and can adapt to various harsh environments


Product Detail

Product Tags

Description

The heavy-duty PTZ is designed to cope with heavy-load requirements and complex working conditions. It is a key device in large-scale monitoring, industrial and special operation scenarios. Its structural design is sturdy, and the main body is mostly made of high-strength steel or aluminum alloy. The surface is anti-corrosive treated to withstand harsh environments. The rotating joints and bearings are strengthened to carry several tons of weight and achieve smooth rotation. The protection level is above IP65, and it has excellent waterproof and dustproof performance. The power system is equipped with a high-power motor, which outputs strong torque and is equipped with an efficient transmission device to ensure efficient operation. It supports remote control, and can achieve all-round remote operation through RS485 or Ethernet interface to meet the remote monitoring and operation needs in different scenarios.

Main Feature

a.Long life, high precision and heavy load capacity
b. Control accuracy ≤0.01°, smooth control and small jitter
c.High positioning accuracy, supports angle positioning at different speeds, and has good tracking effect
d. Support Pan&Tilt status information feedback
e. Good high and low temperature performance, wide application range
f. The surface uses PTA three-proof coating, which has strong corrosion resistance
g.The whole machine adopts super strong aluminum alloy shell, IP66 protection, rainproof and dustproof, and can adapt to various harsh environments

Customized Option

Option 1:
Use standard plastic mold parts structure material for pan&tilt.
Use customized CNC metal material structure for slip ring.

Option 2:
Use customized CNC metal material structure for pan&tilt.
Use customized CNC metal material structure for slip ring.

Application

It can be combined with one or more of network thermal imaging movements, network all-in-one machines, network gun cameras, laser illuminators, laser rangefinders, etc. to form a thermal imaging pan&tilt camera.、Visible light pan&tilt cameras, laser cameras, dual-band cameras, multi-band cameras and other products.Depending on the configuration, it corresponds to different application scenarios and is widely used in rivers, reservoirs, marine ranches, ports and terminals, forest fire prevention, border and coastal defense, rail transit, road transportation and many other usage environments.

Specification

HP-HX50 High-precision heavy-load Pan&Tilt

Horizontal rotation range:

360° continuous rotation

Horizontal rotation speed:

0.01°/s~30°/s (high speed needs to be customized, the highest can meet 0.01°/s~60°/s)

Vertical rotation angle range:

-15°~+45°

Vertical rotation speed range:

  1. 0.01°/s~10°/s

Repeat positioning accuracy:

≤0.1°

Control       accuracy:

  1. ≤0.01°

Loading       capacity:

50kg

Transmission      mode:

worm gear with self-locking function

Number of preset positions:

255, preset speed adjustable

Angle       positioning:

support different speed angle positioning settings
Support preset position and cruise
Electrical interface - Slip ring channels location
Gigabit Ethernet signal 8 Gigabit Ethernet signal cables, twisted in pairs, use RJ45 connector (that is inlet to the internal slip ring) the data rate is 1000 Mbps.
Power channel 30 power cables (2A/cable), including 22 straight through side wall power cables and 8 power cables for internal power supply of the gimbal(Power : 24 Vdc, 150W), 22 pin connectors.
RF channel RF coaxial line, select the corresponding impedance according to the signal type, RF Connector , use standard N-type with 8 GHz and losses below 2 dBm.
Network Protocol Four RS422 signal lines (control : RS422, Pelco D, 2400/4800/9600/19200 bps)
Power consumption weight
Working voltage: DC24V/AC24V ±20%
Max power consumption: ≤160W
Standby power consumption: ≤50W
Product size: 226mm×383.7mm×419mm
Weight: ≤28kg (high-speed pan&tilt ≤34kg)
Environment adaptation
Working temperature: -40℃+60℃
Working humidity: ≤95%RH
Protection grade: IP66
Salt spray protection: At a PH value of 6.5 to 7.2, spray continuously for 96 hours without any surface changes
Anti-surge: Built-in surge protection in interface circuit

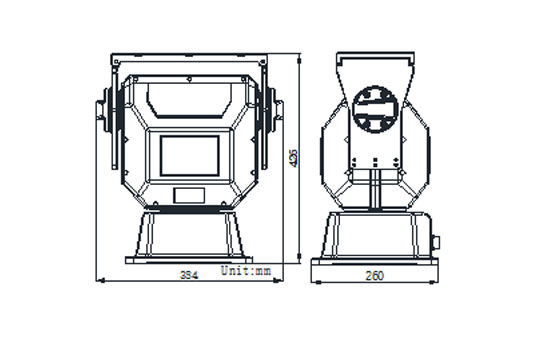

Overall dimension

Overall-dimension

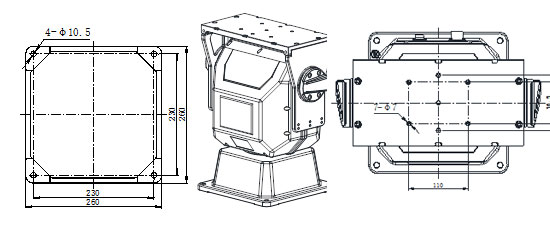

Base installation dimension

Base-installation-dimension-1

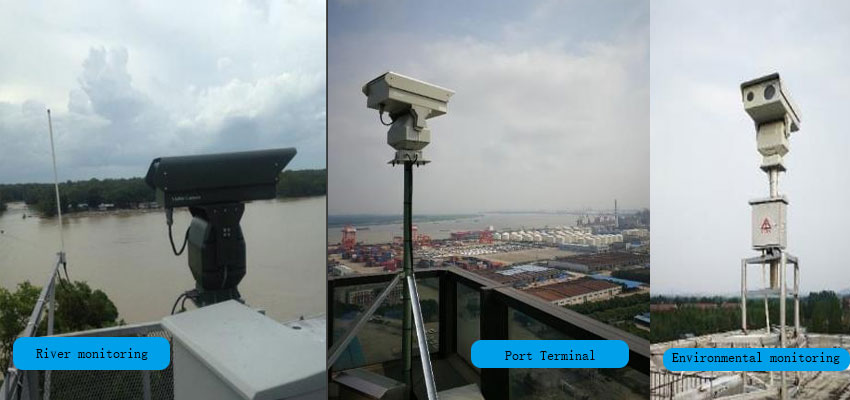

Typical application pictures

Application-picture-4
