High precision through hole slip ring DHK012F-7 with ID 12mm 7rings 5Aslipring

Short Description:

DHK series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 3 to 500mm. The current is from 2mA to 1000 amps. which can fully meet different needs of transmission.

Send email to us

Product Detail

Product Tags

Specification：

Ingiant through hole slip ring for automation machines

DHK012F-7
The main parameters
Number of circuits	7	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

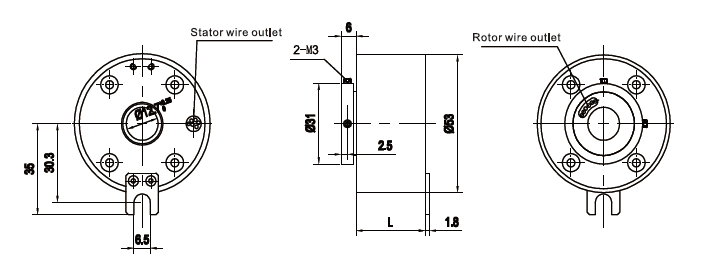

Standard product outline drawing:

Features:

◎Transmit analog and digital signal

◎The power and signal are mixed transmitted, and the signal categories are as follows:

◎Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

◎Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.

◎HD video: SDI, LVDS, etc.

◎Serial communication: RS232, RS485, RS422, etc.

◎Universal Serial Bus: USB2.0

◎Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.

◎Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

◎Long service life, maintenance-free

◎Easy to install

Main Applications:

◎Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition / display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging machinery/Ship offshore equipment/Construction machinery
