Hydraulic Electrical Combined Slip Ring DHS225-38-2Y-1F

Short Description:

    1. Ingiant DHS225-35-2Y-1F can hybrid transmission of hydraulic ,fiber optic and electrical ,offer 38 channels of power and signal .
    2. High quality weight around 220kg
    3. Can customized lead length ,No of circuit ,transfer medium pneumatic and hydraulic  .




Product Detail

Product Tags

DHS225-38-2Y-1F Series Hydraulic -Fiber Optic Combined Slip Ring Description:

Ingiant DHS225-38-2Y-1F series hydraulic-fiber optic combined slip ring outer diameter 225 mm ,it consists of 38 channels included extract 2 way hydraulic and 1 fiber optic channel. 2 circuit of 400 amp ,housing material previous metal ,working speed 0-10 rpm ,small size and light weight.

Typical Applications:

Oil drilling platform - ensure the continuous flow of fluids such as drilling fluids, while also ensuring that the control system can be monitored and adjusted in real time through the fiber optic interface.
Chemical mechanical planarization (CMP) equipment and single crystal furnaces - provide necessary coolants or other processing liquids, and maintain a communication link with the central control system
High-speed double-layer multi-sided multi-layer extrusion coater - stack size ≥ 225mm × 225mm; image alignment accuracy: ± 5μm; transmission method: roll-to-roll requirements

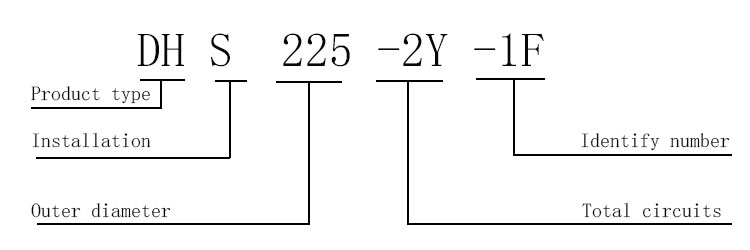

Product Naming Method:

Hydraulic-Fiber optic combined slip ring naming description
  1. 1.Product type: DH— slip ring
  2. 2.Installation Method : Solid Shaft
  3. 3 Shell diameter:  Outer Diameter
  4. 4.Circuit Number: Number (number of optical channels)
  5. 5.Hydraulic Number:  2Y-2 Hydraulic Channel
  6. 6. Fiber Optic Number : 1F-1 Fiber Optic Channel

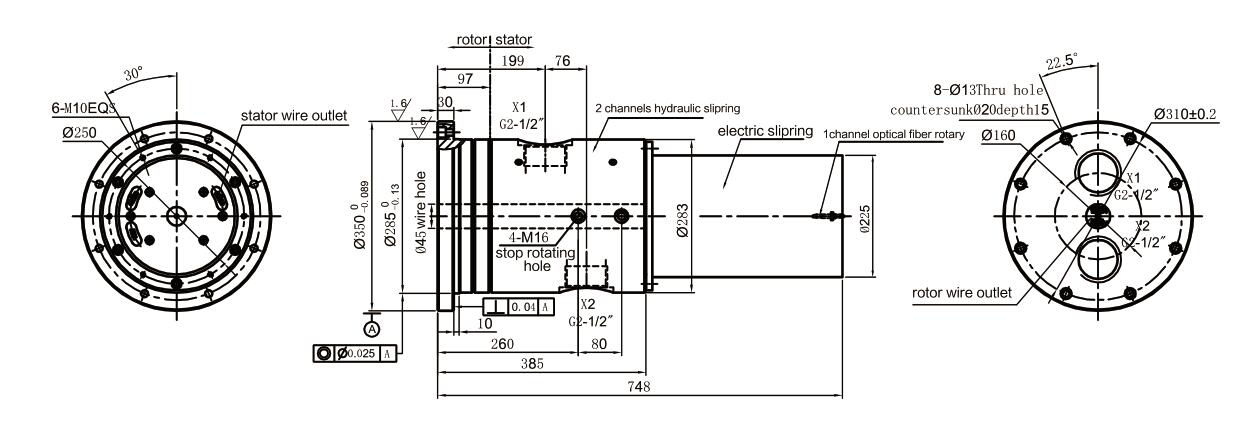

DHS099-24-1Q Pneumatic Electrical Slip Ring Standard Drawing :

Hydraulic-Fiber Optic Combined Slip Ring Drawing

If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you

 DHS225-38-2Y-1F Pneumatic Electrical Slip Ring Technical Parameters:

 Hydraulic Channel Parameters
No of Channels 2 Ring or Custom
Interface Thread G2-1/2"
Flow Hole Φ51
Medium Water glycol
Working Pressure 1Mpa
Working Speed ≤200rpm
Working temperature -30℃~+80℃
Electrical technical Mechanical technical
No of Channels 38 rings or Custom Speed ​​range 0-10rpm
Rated Current 2 Circuit for 400A Protection level IP54
Rated Voltage 0-440VAC/240VDC Structural material precious metal
Contact resistance variation <10mΩ Working humidity <70%
Insulation resistance 1000MΩ@1000VDC Electrical contact material Precious metal
Electrical strength 1500VAC@50Hz,60s,1mA Structural material Q235A
Working temperature -40℃~+60℃
