Ingiant 100M network cable through hole conductive slip ring hole diameter 70mm 42channels

Short Description:

Through hole conductive slip ring – DHK series

Support customization, standardized product inner diameter 3-500mm, current 2-1000 amps



INGIANT Technology integrates design, R&D and production, and provides through hole conductive slip rings and rotary transmission solutions that are widely used in electromechanical systems with 360° unlimited continuous rotation. Successful cases include medical equipment, CNC turntables, CNC machining centers, automation equipment, robotic arms, wire reels, cable reels, packaging machinery, filling equipment, wind turbines, etc. Iterative plans have also been launched for applications in new fields such as automated robots, fully automatic inspection equipment, and VR in the era of artificial intelligence and Industry 4.0.


Product Detail

Product Tags

DHK070-42

The main parameters

Number of circuits

42

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

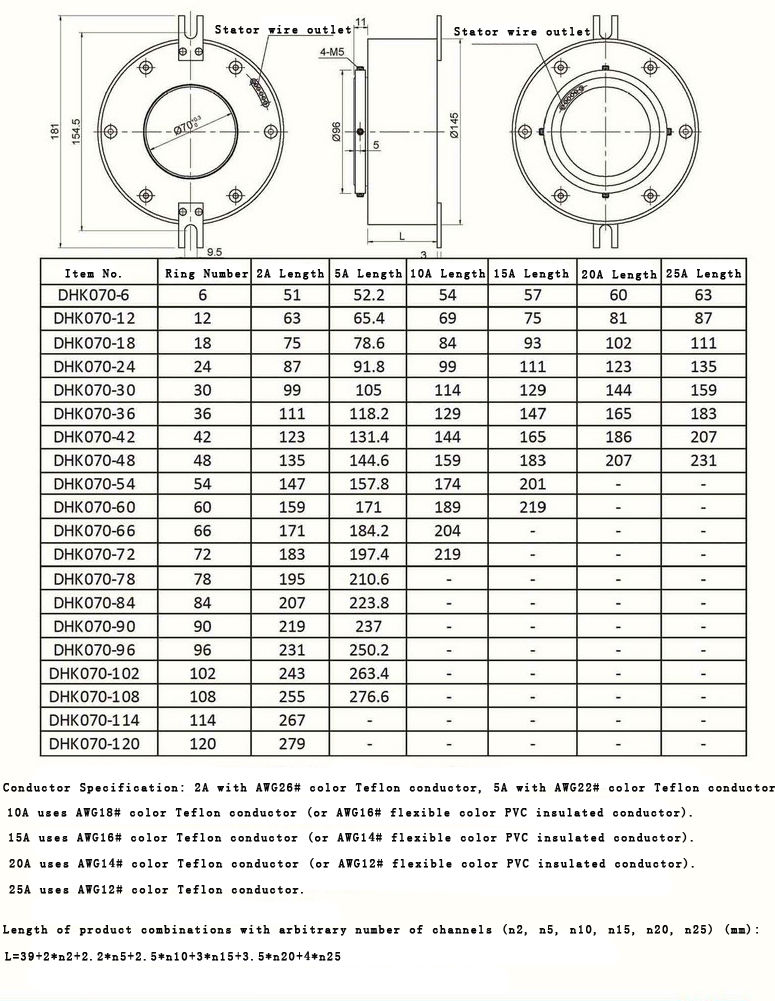

Standard product outline drawing:

DHK070

Through hole conductive slip ring – DHK series

Support customization, standardized product inner diameter 3-500mm, current 2-1000 amps



INGIANT Technology integrates design, R&D and production, and provides through hole conductive slip rings and rotary transmission solutions that are widely used in electromechanical systems with 360° unlimited continuous rotation. Successful cases include medical equipment, CNC turntables, CNC machining centers, automation equipment, robotic arms, wire reels, cable reels, packaging machinery, filling equipment, wind turbines, etc. Iterative plans have also been launched for applications in new fields such as automated robots, fully automatic inspection equipment, and VR in the era of artificial intelligence and Industry 4.0.



Features

  •  Able to integrate power, signal and data into a rotating transmission system without interference
  •   Simultaneous transmission of temperature control signals and thermocouple signals
  •   Fiber brush bundle technology ensures reliable contact and low friction coefficient
  •   Adopt a more reliable all-metal shell protective structure
  •   Integrated design, easy to install
  •   3-500mm aperture optional
  •   2-1000A current optional
  •   1-300 channels optional

QQ图片20230322163852

Our Advantage

  1. Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
  2. Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
  3. Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.

QQ截图20230322163935
