Ingiant 120mm gas-electric hybrid slip ring 1 channel pneumatic rotary joint + 74 electrical channels

Pneumatic rotary joint parameters：

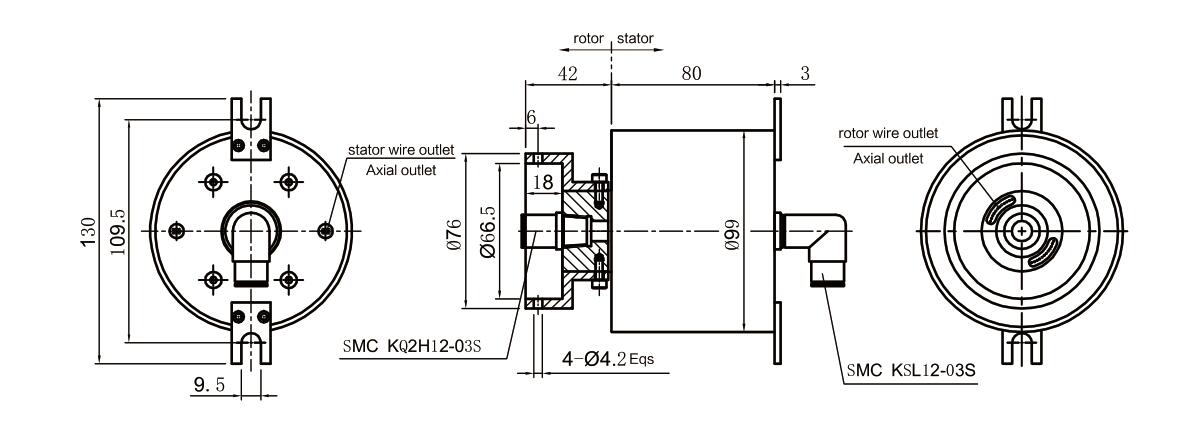

Standard product outline drawing:

Gas-electric hybrid slip ring  Pneumatic rotary joint :1channel  outer diameter: 120mm
DHS120-74-1Q gas-electric hybrid slip ring, 1 channel pneumatic rotary joint + 74 electrical channels. Small torque, high cost performance, maximum speed up to 600RPM, can transmit compressed air, vacuum negative pressure, and power signal at the same time. It is mainly used in 360-degree continuous rotation and needs to ensure that air pressure, vacuum, power supply, and signal cannot be interrupted.

Features:

• · 360-degree rotation to transmit gas, power signal and other media at the same time
• · Support 1/2/3/4/5/6/8/12/16/24 gas channels.
• · Support 1~128 power lines or signal lines.
• · Standard interfaces include G1/4”, G1/8″, G3/8″, etc.
• · The size of the gas pipe can be determined according to customer requirements.
• · Can transmit compressed air, vacuum, hydraulic oil, water, hot water, coolant, steam and other media.

Typical applications: non-standard automation equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, laminating equipment, electronic semiconductor industrial automation equipment; optoelectronic flat panel displays, industrial automation equipment, testing equipment, other non-standard automation professional equipment, etc.

Our advantage:

1. Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
2. Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
3. INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
