Ingiant 2 high frequency channels RF slip ring 80mm mix 84 channels of power/signal

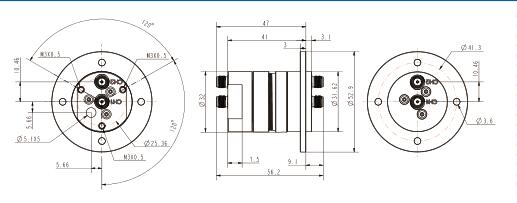

Standard product outline drawing:

DHS080 Series Rfslip ring RF/Coaxial/Waveguide Rotary Joint

DHS080 series RF slip rings are products specially developed to meet the transmission of high-speed serial digital signals or analog signals. The maximum transmission rate can reach 40GHz.

2-channel radio frequency rotary joint + electric combination slip ring

RF slip ring supports the independent transmission of single-channel RF signals, and can also support the mixed transmission of RF signals and 24V control signals, communication signals, power supplies, and fluid media.

The RF signal uses a 50Ω characteristic impedance RF coaxial structure head. (Other designated connectors can be transferred, and wire specifications RG178, RG316, RG174, etc. are optional)

Features

• Support 1,2,3,4,6,8 high frequency channels
• Can mix 1~96 channels of power/signal
• Perfect standing wave ratio VSWR
• Suitable for transmission of large amounts of data without delay
• High-speed transmission of ultra-high-definition video data

Typical applications: military radar, shipborne satellite communication devices, vehicle-mounted satellite communication equipment, satellite vehicles, emergency disaster command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, national security or international safety system subsea operation systems, emergency lighting equipment, robots, exhibition/display equipment, etc.;

Our advantage:

1）Product advantage: Compact slip rings for complex industrial power and signal transmission. Advanced fibre brush technology for long life and low contact resistance. Combined power and signal transmission possible.

2）Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

3）Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
