Ingiant 22mm through hole HD slip ring transmit HD (1080P) video signals and ordinary signals

Short Description:

DHK022-24 HD slip ring is specially designed to transmit high-definition (1080P) video signals and ordinary signals. Designed to be combined with a rotary joint to transmit high-quality, uncompressed video signals



HD slip rings are based on HD multimedia interfaces and are used to rotate uncompressed audio and video signals. High-definition video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as radio and television, photography, video, and VR.


Product Detail

Product Tags

DHK022-24

The main parameters

Number of circuits

24

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

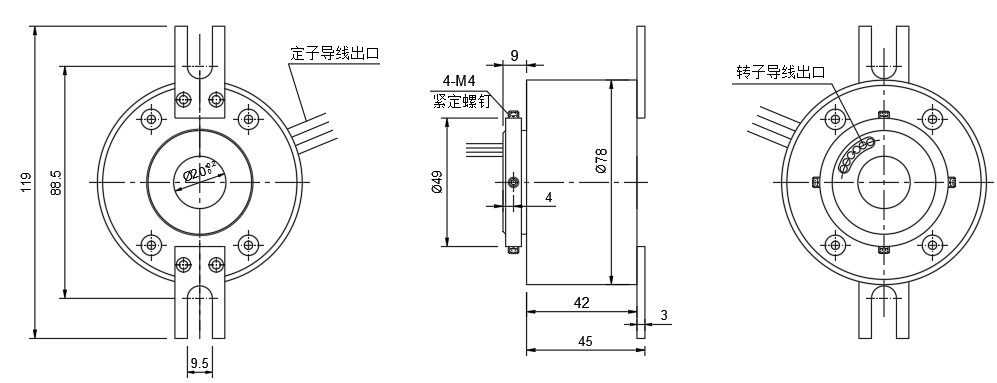

Standard product outline drawing:

DHK020-5-10A



DHK022-24 HD slip ring is specially designed to transmit high-definition (1080P) video signals and ordinary signals. Designed to be combined with a rotary joint to transmit high-quality, uncompressed video signals



HD slip rings are based on HD multimedia interfaces and are used to rotate uncompressed audio and video signals. High-definition video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as radio and television, photography, video, and VR.



Features

  • Using imported components and high-frequency signal processing technology,
  • Under 360° continuous rotation, transmit 1080P, HD-SDI video and current and signals;
  • Less noise, long life;
  • Low torque, smooth rotation;
  • Electrical noise is <0.01Ω and supports DC~3GHz high-rate data.
  • The product adopts military surface treatment technology and super-hard gold plating to ensure extremely low resistance fluctuation and long working life.



Typical applications

Monitoring pan/tilt, automatic arm, medical equipment, Rotary index table, production line, industrial processing equipment
