Ingiant 25mm 100/1000M Ethernet slip ring used in high-definition video surveillance systems

Short Description:

Ethernet slip ring

Accept customization and transmit 100/1000M Ethernet signals



Ethernet slip ring is specially designed for 250MHz frequency signals and is designed to transmit 100M/1000M Ethernet signals.

It has the advantages of stable transmission, no packet loss, no aliasing, small return loss, small insertion loss, strong anti-interference ability, and supports POE.

Ethernet slip rings can mix electrical power paths and signal paths. It can transmit up to 8 Ethernet channels at the same time, and provides RJ45 connector for direct plugging and unplugging Support RJ45 connector, ultra-low BER bit error rate and ultra-high signal-to-noise ratio.

Ethernet slip rings are used in high-definition video surveillance systems. The transmission between the rotating high-definition camera and the control platform complies with the HDTV standard and the resolution can reach 1920X1080 or above, providing an effective solution for full real-time images.


Product Detail

Product Tags

DHS025-40

The main parameters

Number of circuits

40

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

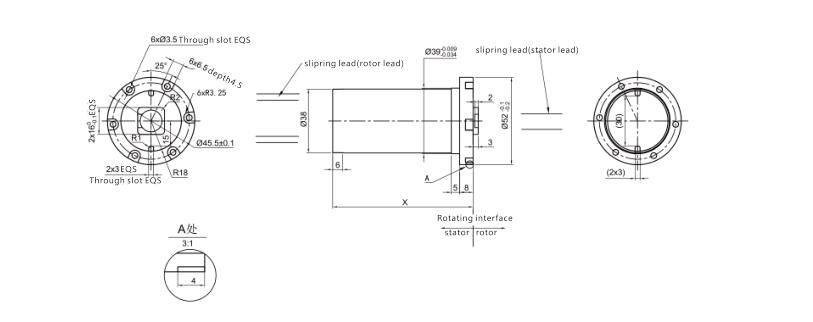

Product drawing:

DHS039-23-004

Ethernet slip ring

Accept customization and transmit 100/1000M Ethernet signals

Ethernet slip ring is specially designed for 250MHz frequency signals and is designed to transmit 100M/1000M Ethernet signals.

It has the advantages of stable transmission, no packet loss, no aliasing, small return loss, small insertion loss, strong anti-interference ability, and supports POE.

Ethernet slip rings can mix electrical power paths and signal paths. It can transmit up to 8 Ethernet channels at the same time, and provides RJ45 connector for direct plugging and unplugging Support RJ45 connector, ultra-low BER bit error rate and ultra-high signal-to-noise ratio.

Ethernet slip rings are used in high-definition video surveillance systems. The transmission between the rotating high-definition camera and the control platform complies with the HDTV standard and the resolution can reach 1920X1080 or above, providing an effective solution for full real-time images.

Features

  •   It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
  •   Fiber brush bundle contact structure ensures product life
  •   Stable transmission of 1-2 channels of Gigabit Ethernet signals
  •   Integrated structural design for easy installation
  •   Protection grade IP51-IP68 optional
  •   Standard models available and customizable
  •   RJ45 male and female connector optional
  •   Use high-quality Ethernet cables
  •   maintenance free

Typical applications

Industrial Machinery – Combined machining center machine tools, rotary indexing tables; Heavy equipment turrets, cable reels, test equipment; Packaging machines, stackers, magnetic clutches, process equipment; Rotary sensors, emergency lighting, robotics; Exhibition/display equipment , medical equipment
