Ingiant 25mm Through Hole Slip Ring For Turntable
Specification
|
DHK025-36 |
|||
|
The main parameters |
|||
| Number of circuits | 36 | Working temperature | “-40℃~+65℃" |
| Rated current | 2A~50A, can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

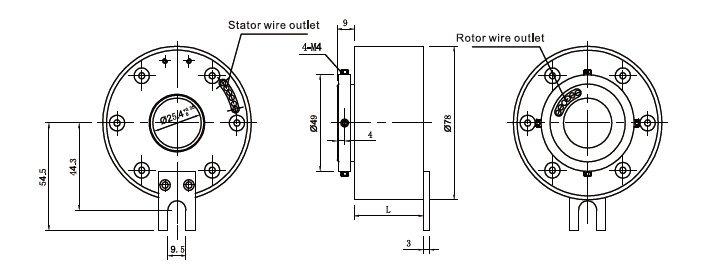

Standard Product Outline Drawing
Application Filed
Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition / display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging machinery/Ship offshore equipment/Construction machinery
Our advantage
1. Product advantage: Stable transmit analog and digital signal; Adopts gold-to-gold contact to transmit signal; Able to integrate up to 135 channels; Module design, guarantees consistency of the products; Compact structure, small size; Adopt special soft wire ; Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data signals.
2. Company advantage: Owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 58 kinds of technical patents of slip rings and rotary joints(include 46 utility model patents, 12 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
3. Excellent after-sales and technical support service: Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict quality control system, perfect pre-sale and after-sales service, Ingiant obtain trusts from more and more customers all over the world.
Factory Scene
