Ingiant 30mm series high-definition video slip ring with 1 channel 3G-SDI signals for Radar communication
|
DHS030-26 |
|||
|
The main parameters |
|||
|
Number of circuits |
26 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

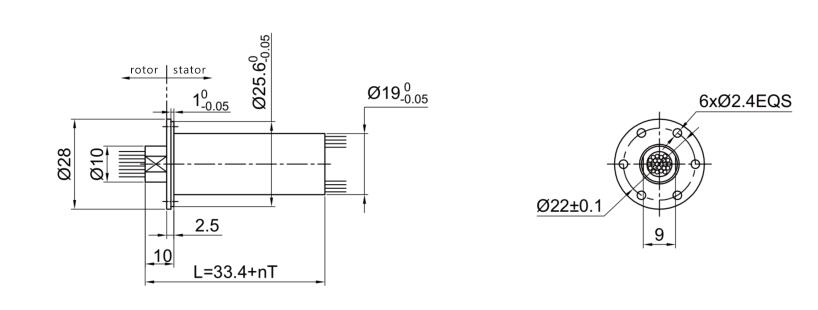

Standard product outline drawing:
High-definition Video Slip Ring: HD-SDI Slip Ring
Customize various high-definition signals with standard DC-3GHz frequency
DHS030-26 high-definition video slip ring is specially designed to transmit high-definition (1080P) video signals and regular signals. Can be combined with a rotary joint design to transmit uncompressed high-quality video signals. High definition conductive slip rings are based on high-definition multimedia interfaces and are used for rotating transmission of uncompressed audio and video signals.
Feature
- Stable transmission of 2K/4K/1080P resolution high-definition video signals
- High bandwidth, up to 10.2Gbps, supports HDMI 1.4 version
- High speed, up to 2.97Gbps, supports 3G-SDI
- Optoelectronic combination and optoelectronic transmission supporting scheme
Typical applications
- High definition monitoring system
- High definition camera photography
- Radar communication
- VR reality
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
