Ingiant 4 channels hydraulic rotary joint out diameter 98mm for Hydraulic machinery

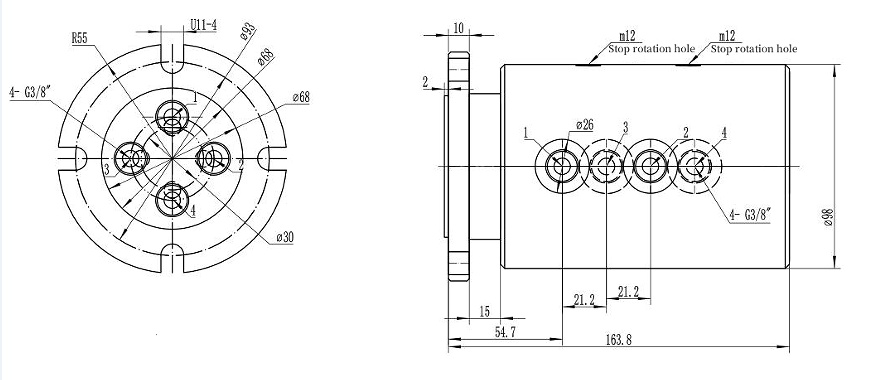

Standard product outline drawing:

Hydraulic rotary joint: 4-channel multi-function fluid rotary joint

LHS098-4Y series hydraulic rotary joint is 4 channels rotary joint ,out diameter 98mm, Interface size G3/8″, transmission hydraulic oil.

Hydraulic rotary joint is a kind of rotary joint specially used for low-speed, high-pressure, multi-medium and multi-channel equipment. It serves the rotary table of machining center, hydraulic workstation, coiler, converter, large-bale rotary table, hydraulic machinery and multi-channel high-pressure controller and other equipment.

Features:

• Hydraulic rotary joint has 7 specifications with 2, 3, 4, 6, 8, 10 and 12 channels.
• It uses special sealing technology for multi-channel rotary joints, suitable for vacuum and bidirectional pressure and independent flow channels.
• It can transmit different types of media at the same time, such as compressed air, vacuum, hydraulic oil, water, hot water, coolant, steam and other media.
• It is the most versatile and multifunctional rotary joint with many specifications and models, suitable for 90% of applications.
• Hydraulic central rotary joint has a wide pressure range, up to 50MPa.

Typical applications:

Industrial machine processing centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotary sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;

Our advantage:

1. Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
2. Company advantage:  Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
3. customised  advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .
