Ingiant 4 channels optoelectronic slip ring out diameter 73mm 32 channels power signal

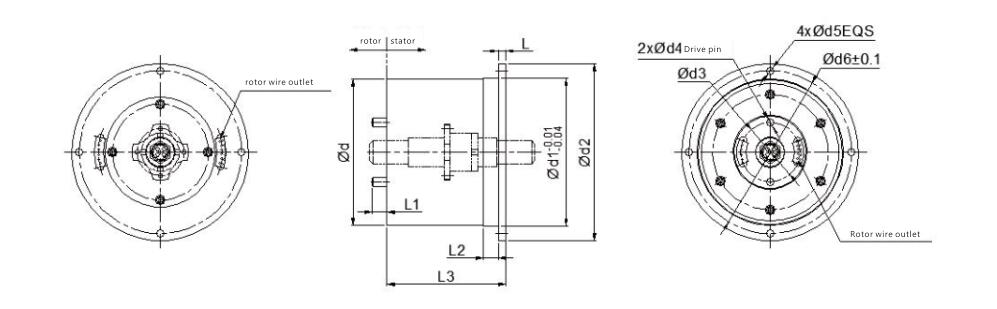

Standard product outline drawing:

DHS073-32-4F 4 channels optoelectronic slip ring | 4 channels optoelectronic hybrid slip ring, which can transmit 4 optical fibers and 1 to 72 electrical channels at the same time. It is an integral precision conductive slip ring with an all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 50A, voltage 600VAC/VDC. It supports single-mode and multi-mode, uses optical fiber as the data transmission carrier, is suitable for harsh environments, and solves the rotation transmission problem for optical series and optoelectronic systems.

Product features

•   Large data transmission capacity, high transmission rate
•   Suitable for long-distance transmission
•   No packet loss, no electromagnetic interference
•   Compact design, light weight
•   Applicable to harsh environments
•   Extremely long service life

Typical applications:

High-end robots, high-end material conveying systems, rotating turrets on military vehicles, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;

Our advantage:

1. Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
2. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. We obtained ISO 9001 certification, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
3. Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
