Ingiant 78mm Servo slip ring encoder slip ring 55 channels transmit encoder signal

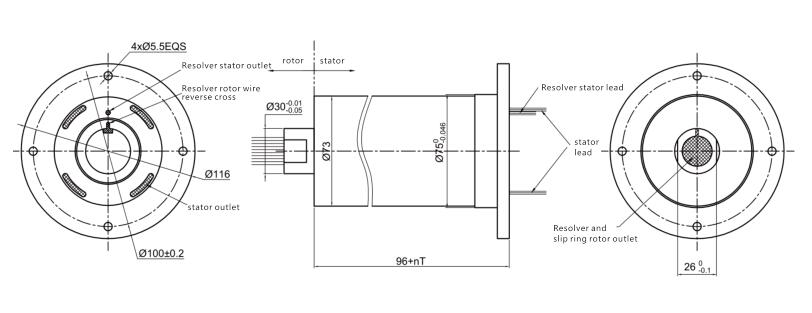

Standard product outline drawing:

Servo Slip Ring – DHS078-55 Series

Customization accepted, 1-4 standard motors optional

DHS078-55 series servo slip rings have special processing for internal shielding and wiring, with no packet loss and extremely low bit error rate. Servo slip rings are conductive slip rings used in servo encoders and servo motors. Servo slip rings can save a lot of cables and installation work. Suitable for various servo motors and stepper motors, it can not only supply power but also transmit various data. Usually gold-to-gold contact is used, and the design is reasonable to avoid internal and external interference.

Features

• Special internal shielding and wiring design
• Lubrication-free bearings
• gold to gold contact
• Easy to install

Typical applications:

Mainly used in various servo systems at home and abroad: such as Japan’s Yaskawa, Panasonic, Mitsubishi, Germany’s Siemens servo motors, French Schneider servo motors, German Lenz servo motors, Austrian B&R servo motors, Keba servo motors, Israeli Fagor servo motors , Germany’s Beckhoff servo motor, Elmo servo motor, American AB servo motor, Ruinuo servo motor, and China’s Delta servo motor, TECO servo motor, Shenzhen Inovance servo motor, Huazhong CNC servo motor, Lechuang servo motor , Guangtai CNC, etc.;

Our advantage:

1）Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.

2）Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.

3）Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
