Ingiant accept customization 2 channels solid shaft Gigabit Ethernet slip ring RJ45 slip ring

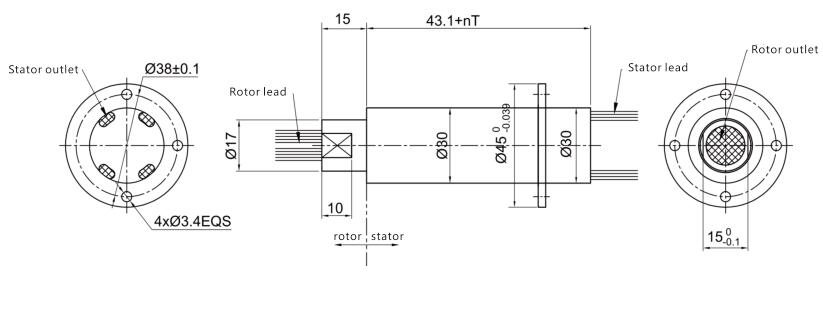

Product drawing:

DHS060-70 is a solid shaft Ethernet slip ring with an outer diameter of 60mm. Supports up to 60 channels of power and 2 channels of Gigabit Ethernet. Gigabit Ethernet slip rings have high-speed transmission characteristics, provide communication bandwidth up to 1Gbps, are compatible with traditional Ethernet technical specifications, are cost-effective, easy to unified management, and convenient for iterative upgrades.

Ethernet Slip Ring – DHS Series

Accept customization and transmit 100/1000M Ethernet signals

Insertion loss, return loss and crosstalk are three important parameters of Ethernet slip rings. Ethernet slip rings are made of reliable precious metal materials and aluminum casings. Mature and stable technology enables the production of slip rings with remarkable features such as stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss. The design can be customized according to actual needs.

Features

• Stable transmission of 2-channel Gigabit Ethernet signals
• The contact part of the brush is plated with rare precious metals and has a long service life.
• Plug and play RJ45 interface
• Dedicated Ethernet cable
• Small size, easy to install
• Maintenance-free use
• Stable transmission, no packet loss, no serial coding, large return loss, low insertion loss

Typical application

• Small network system
• Video surveillance system
• Stage control system
• Industrial automation control
• Various types of network cables and RJ45 interface transmission

Our advantage:

1. Product advantage: For a long time, we always adhere to the strict implementation of ISO9001 quality management system standards, in the design, incoming material inspection, production, testing and other links to carry out strict control, and constantly improve the production process. To ensure our production of conductive slip ring superior performance and quality stability.
2. Company advantage:  Professional team, exquisite technology, sophisticated equipment, perfect management, advanced business philosophy
3. Customized advantage: Can be customized according to various types of non-standard precision slip ring, gas electric slip ring, micro conductive slip ring, HD slip ring, optical fiber slip ring, high-frequency slip ring, wind power slip ring, large current slip ring, motor slip ring, fan slip ring, hollow shaft conductive slip ring, electric rotating slip ring, crane center conductive ring, crane conductive ring, high voltage collector ring, etc. And other special requirements, we can meet the needs of customers.
