Ingiant capsulated conductive slip ring for pick and place robot
|
DHS066-61 |
|||
|
The main parameters |
|||
|
Number of circuits |
61 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

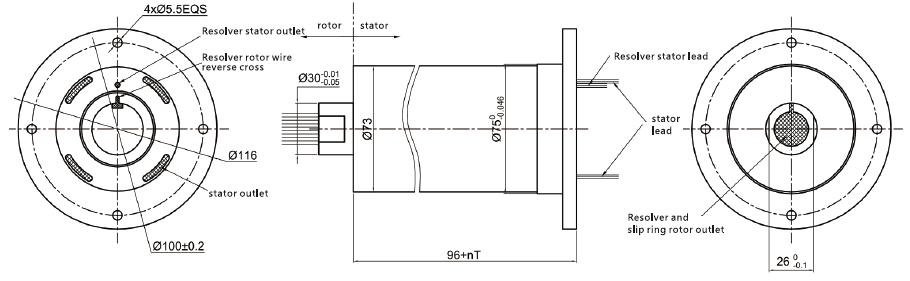

Product drawing:
Capsulated conductive slip ring is a general term for a series of conductive slip rings with a round flange attached to the shell. The Capsulated slip ring looks like a cap, compact design, small size, and easy to install.
- The product adopts the American military surface treatment process and super-hard gold plating treatment to ensure extremely low resistance fluctuation and long working life.
- ·It is mainly used to transmit weak control signals and weak currents of small and medium-sized systems. Such as video, control, sensing, power, Ethernet.
- Low torque, low loss and maintenance-free; low electrical noise
- Typical applications: drones, camera stabilizers, smart homes, security monitoring, photography, robots, test instruments, turntables and automation equipment.
- All kinds of Capsulated slip rings, Capsulated slip rings, high-speed ball conductive slip rings, Capsulated conductive rings, etc. can be customized.
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
