Ingiant capsulated miniature slip rings are maintenance-free for engineering machinery

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

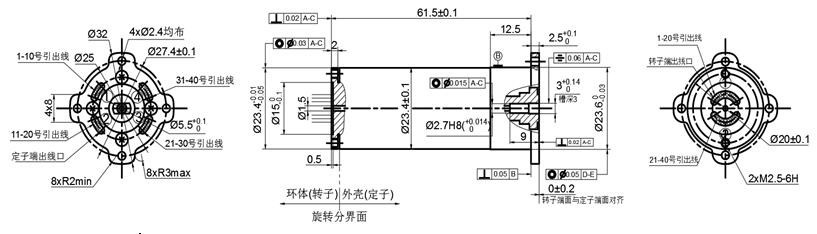

Product drawing:

Advantages of Capsulated Slip Rings

The encapsulation protects the inner workings of the slip rings against the following disturbances, depending on the level of protection and enclosure material:

• Intrusion of dust
• Ingress of moisture
• Electrical interference
• Vibration
• Slip
• Shocks, blows and vibrations

Ingress of dust, especially electrically conductive metal or coal dust, will cause short circuits in a very short time. Since the contact rings and the sliding contacts are not insulated, they react extremely sensitively to penetrating dust. Non-conductive dust can settle on the rotating components and form an undesirable insulating layer.

Penetrating moisture can cause corrosion on the contacts. To ensure maximum operational safety, the contact rings and the sliding contacts are coated with silver. This metal only forms a thin oxidation layer, which immediately removes itself through normal operation of the slip ring. Alternatively, the surfaces can be provided with a gold alloy, which has a positive effect on signal transmission quality and prevention of oxidation.

Electrical disturbances penetrate less into the slip ring, but they can escape from it. Any slight loss of contact can cause an arc, which emits a radio signal. This radio signal can interfere with surrounding components, especially those with wireless signal transmission. The encapsulation prevents these disturbing emissions and shields them reliably.

Finally, the encapsulation is designed to be so robust that it is largely insensitive to mechanical stress. For particularly demanding environments, we also offer enclosures made of stainless steel. These are also ideal for hygienically critical environments. Stainless steel can be disinfected very well and has aseptic properties.

Our advantage:

Product advantage : To ensure only the highest quality products, We’ll perform the tests  in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.

Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.

Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
