Ingiant capsulated miniature slip rings diameter 30mm 63channels for welding equipment

Short Description:

Compact Slip Rings with outer diameter from 5.5mm to 54mm

High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.


Product Detail

Product Tags

DHS030-63

The main parameters

Number of circuits

63

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

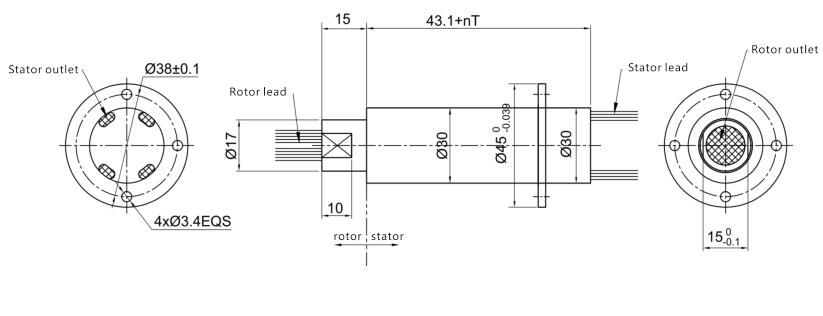

Standard product outline drawing:

DHS030-42

Capsulated Miniature Slip Rings for Power- and Signal Transmission

Compact Slip Rings with outer diameter from 5.5mm to 54mm

High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.



Maintenance of Capsulated Slip Rings

The capsulated miniature slip rings are maintenance-free. They cannot be disassembled. The components are pressed and capsulated at the factory in such a way that they provide consistent reliability and transmission quality over their entire service life. Afterwards, the inexpensive components can be easily exchanged and replaced with a new part. Apart from external cleaning and regular checks of the non-locking rotatability, the capsulated miniature slip rings require no maintenance work.

QQ图片20230322163852

Our advantage:

  1. Product advantage: Transmit analog and digital signal;Adopts gold-to-gold contact to transmit signal;Able to integrate up to 135 channels;Module design, guarantees consistency of the products;Compact structure, small size;Adopt special soft wire ;Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
  2. Company advantage:   Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
  3. Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
