Ingiant capsulated USB slip rings for USB and electrical power/signal transmission

Short Description:

Capsulated USB slip rings with one or two USB feedthroughs

Hybrid slip rings for USB and electrical power/signal transmission. Transmission of USB1.0, USB2.0 and USB3.0, USB3.1, USB3.2 with transmission rates up to 20GBit/s. Encapsulated or hollow shaft housing for customised implementation. Standardised and modularised design.


Product Detail

Product Tags

DHS021-18

The main parameters

Number of circuits

18

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

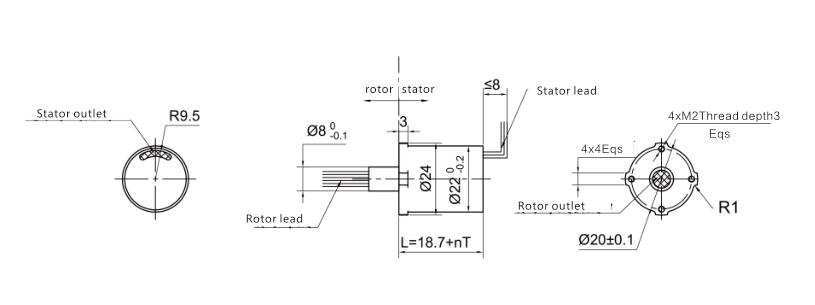

Product drawing:

DHS022-15

Capsulated USB slip rings with one or two USB feedthroughs

Hybrid slip rings for USB and electrical power/signal transmission. Transmission of USB1.0, USB2.0 and USB3.0, USB3.1, USB3.2 with transmission rates up to 20GBit/s. Encapsulated or hollow shaft housing for customised implementation. Standardised and modularised design.



Selection of USB slip rings

We can offer you USB slip rings with one to 36 passages. Each USB slip ring complies with the USB 2.0 class. However, they are also downward compatible. If you have applications that need to use USB 3.0, please contact us. In this case, too, we will find a suitable solution for you.

Our USB slip rings can transmit both signals and power feedthroughs up to 20 amps. The maximum working voltage is a full 440 volts for both direct and alternating current. Voltage peaks can be intercepted up to 500 volts at 50 hertz. The electrical noise is a maximum of 10 milliohms. With an insulation resistance of 1000 megohms at 500 volts DC, each of our USB slip rings is also well equipped for unexpectedly high loads.

With up to 600 revolutions per minute, the USB slip ring leaves nothing to be desired in terms of dynamic load. A maximum of two USB feedthroughs can be integrated. Each USB slip ring can be loaded from -30 °C to + 80 °C. If your requirements lie outside this temperature range, please let us know. We will find the ideal solution for this as well.

QQ图片20230322163852

Our advantage:



  1. Product advantage: To ensure only the highest quality products, We’ll perform the tests  in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
  2. Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
  3. Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
