Ingiant customization through hole slip ring 130mm 6 channels 10A

Short Description:

Slip rings – also known as rotary electrical joints, electric rotary joints and slip rings – are devices that can transmit power, electrical signals or data between a stationary part and a rotating part. The design of the slip ring will depend on its application.As a manufacturer and thanks to our competent engineers, we at Ingiant know exactly what slip ring bodies must be able to do in your industry in order to guarantee technical functions, efficient automation and at the same time business success.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    DHK130-6-10A

    The main parameters

    Number of circuits

    6

    Working temperature

    “-40℃~+65℃”

    Rated current

    2A.5A.10A.15A.20A

    Working humidity

    <70%

    Rated voltage

    0~240 VAC/VDC

    Protection level

    IP54

    Insulation resistance

    ≥1000MΩ @500VDC

    Housing material

    Aluminum Alloy

    Insulation strength

    1500 VAC@50Hz,60s,2mA

    Electrical contact material

    Precious metal

    Dynamic resistance variation

    <10MΩ

    Lead wire specification

    Colored Teflon insulated & tinned stranded flexible wire

    Rotating speed

    0~600rpm

    Lead wire length

    500mm + 20mm

    Electrical Slip Ring Parameters

    Rings

    1-200 (or more)

    Current

    2A,5A,10A,20A,25A

    Rated Voltage

    0~600VDC/VAC

    Max speed

    15000RPM

    Housing Material

    Aluminum Alloy, engineering plastic, stainless steel, etc

    Torque

    0.02N.m;+0.01N.m/ 6rings

    Working life

    >80 million

    Contact Material

    Precious Material

    Electrical Noise

    <5mΩ

    Contact resistance:

    <5mΩ

    Dielectric Strength

    2500VAC@50Hz

    Lead Wire

    UL Teflon@Awg22,Awg16

    Insulation Resistance

    1000 MΩ / 500VDC

    Lead Length

    300mm (per required)

    Working Temperature

    -40℃~ 80℃

    Protection Grade

    IP51 – IP68

    Operating Humidity

    10% to 95% RH

    Material

    RoHs

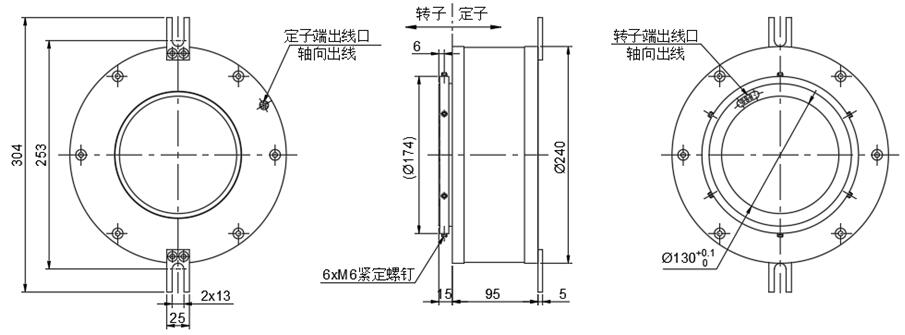

    Standard product outline drawing:

    QQ截图20230714155107

    why do you actually need slip rings and rotary unions?

    When the two parts of the machine rotate relatively 360 degrees without limit and continuous rotation, the wire needs to be connected to the rotating part, and the problem of wire winding will be encountered. At this time, a current connector (conductive slip ring) is needed to solve the cable winding caused by the 360 degree rotation ) to transmit power current and signal current.Slip rings are the only way to enable reliable, maintenance-free and low-wear power transmission, signal transmission and data transmission with simultaneous high system availability . Slip ring transmitters or rotary unions are also used for the wireless transmissionof liquid media (fluids) such as oil, water, grease and emulsion. The transmission of compressed air and gases can also be made possible by means of corresponding rotary unions.

    QQ图片20230322163852

    Our Advantage



    1. Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
    2. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. We obtained ISO 9001 certification, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
    3. Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.

    QQ截图20230322163935
