Ingiant Customized encapsulated miniature slip ring outer diameter 5.5-54mm

Short Description:

Encapsulated Miniature Slip Rings for Power- and Signal Transmission

Compact Slip Rings with outer diameter from 5.5mm to 54mm

High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.


Product Detail

Product Tags

DHS042-30

The main parameters

Number of circuits

30

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

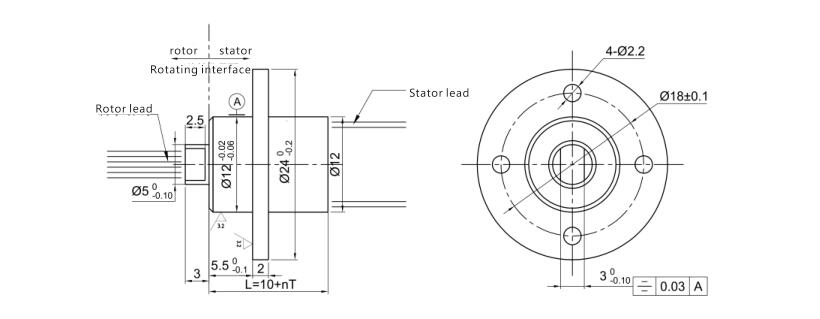

Product drawing:

DHS012-6-1A

Encapsulated Miniature Slip Rings for Power- and Signal Transmission

Compact Slip Rings with outer diameter from 5.5mm to 54mm

High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.



Advantages of Encapsulated Slip Rings

The encapsulation protects the inner workings of the slip rings against the following disturbances, depending on the level of protection and enclosure material:

  •  Intrusion of dust
  • Ingress of moisture
  • Electrical interference
  • Vibration
  • Slip
  • Shocks, blows and vibrations

 QQ图片20230322163852

Our advantage:

  • Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
  • Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
  • Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.

QQ截图20230322163935
