Ingiant Customized Gas-Electric Slip Ring out diameter 150mm with 1 channel external gas slip ring 34 channels power and signal
|
DHS150-34-1Q |
|||
|
The main parameters |
|||
|
Number of circuits |
34 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP65 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

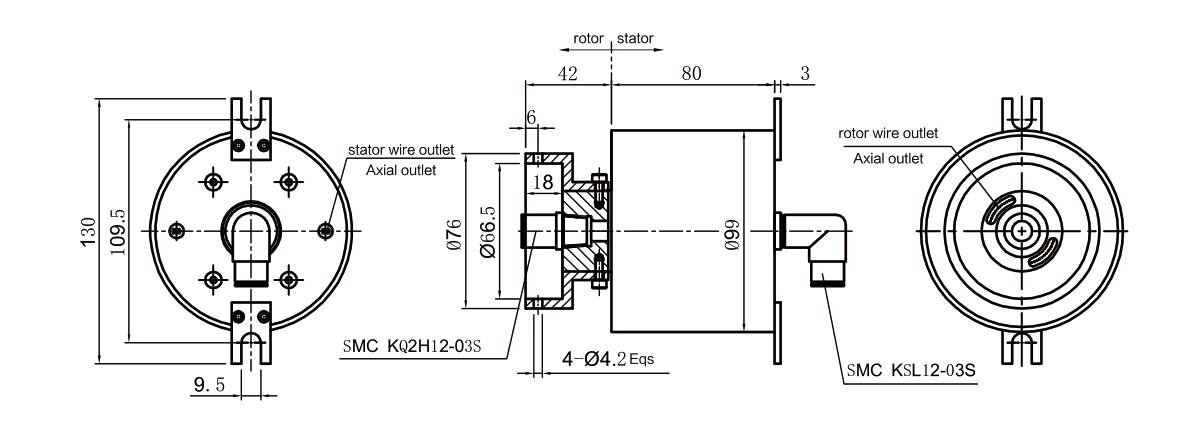

Standard product outline drawing:
Gas-electric slip ring Customized Gas-Electric Hybrid Slip Ring
Hybrid slip rings for simultaneous transmission of media gas and electrics (power, signals)
DHS150-34-1Q gas-electric slip ring, with an outer diameter 150mm, and the total number of electric slip rings is 34 channels, including 10 communication rings and 24 power rings, with a maximum current of 45A. All use aviation plug interfaces. The product has an external gas slip ring, flow hole ∅8, and air pipe outer diameter ∅10. The maximum pressure is 0.8Mpa. An incremental encoder is configured at one end of the product to detect the angular displacement and speed of the product. The encoder can be disassembled and installed for easy replacement.
Features:
- 360-degree rotation and simultaneous transmission of gas, power signal and other media.
- Supports 1/2/3/4/5/6/8/10/12/16/24 gas channels.
- Supports 1~128 power lines or signal lines.
- Standard interfaces include G1/8″, G3/8″, etc. The size of the gas pipe can be customized according to customer requirements.
- Can transmit compressed air, vacuum, hydraulic oil, water, hot water, coolant, steam and other media. Special requirements such as high speed and high pressure can be customized according to requirements.
Typical applications of gas-electric slip rings:
- Automation control systems: such as gas-electric slip rings in robots, automated production lines, machine tools and other equipment;
- Medical equipment: such as gas-electric slip rings in electronic micro-scalpels, precision instruments and other equipment;
- Offshore drilling: such as gas-electric slip rings in equipment such as suction dredgers and large cranes;
- Aerospace: such as gas-electric slip rings in equipment such as solar tracking platforms and aircraft engines.
Our advantage:
- Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
- Product advantage : To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
