Ingiant customized Industrial 100M Ethernet slip rings for automation equipment

Short Description:

Ethernet slip ring – transmits 100M Ethernet signal

Ethernet slip rings are specially developed and designed for 250MHZ signal transmission. While transmitting 1-2 channels of 100M Ethernet signals, it can be combined with 1-26 channels of power ring (2-20A), and the design can be customized according to actual needs.

Ethernet slip rings transmit power and Ethernet signals from fixed structures to rotating structures through the contact between precious metal rings and brush wires. This type of signal slip ring can mix power and signals, and can also transmit multi-channel low-frequency signals and currents. Suitable for 10/100/1000 Base T transmission and equipped with RJ45 plug-and-play plug, optional M12, CAT5E, CAT6 type cables.


Product Detail

Product Tags

DHS052-26

The main parameters

Number of circuits

26

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

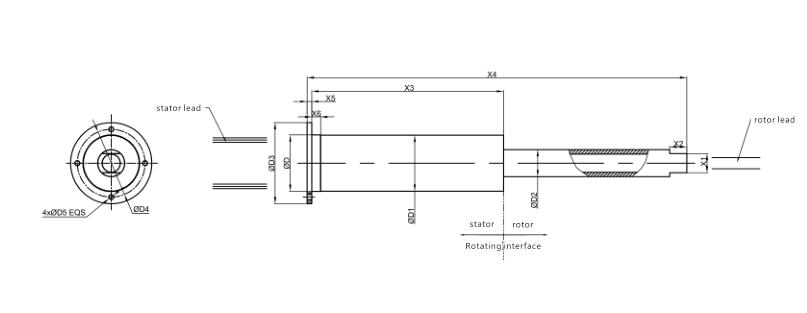

Product drawing:

DHS050-101

Ethernet slip ring – transmits 100M Ethernet signal

Ethernet slip rings are specially developed and designed for 250MHZ signal transmission. While transmitting 1-2 channels of 100M Ethernet signals, it can be combined with 1-26 channels of power ring (2-20A), and the design can be customized according to actual needs.

Ethernet slip rings transmit power and Ethernet signals from fixed structures to rotating structures through the contact between precious metal rings and brush wires. This type of signal slip ring can mix power and signals, and can also transmit multi-channel low-frequency signals and currents. Suitable for 10/100/1000 Base T transmission and equipped with RJ45 plug-and-play plug, optional M12, CAT5E, CAT6 type cables.

Features

  • It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
  • Fiber brush bundle contact structure ensures product life
  • Stable transmission of 1-2 channels of Gigabit Ethernet signals
  • Integrated structural design for easy installation
  • Protection grade IP51-IP68 optional
  • Standard models available and customizable
  • RJ45 male and female connector optional
  • Use high-quality Ethernet cables
  • maintenance free
