Ingiant customized industrial bus slip rings out 32mm 22channels transmission of different signals

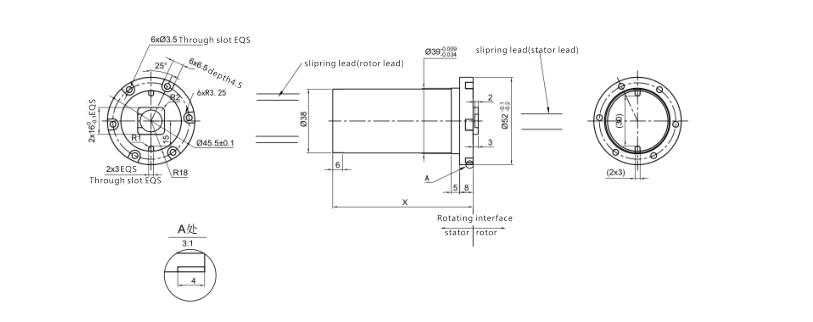

Standard product outline drawing:

Customized Industrial Bus Slip Rings

Industrial bus slip ring DHS032-22 series, outer diameter 32mm, solid structure, suitable for rotary applications requiring outer diameter ≤32mm. Supports 22 rings to meet the transmission of different signals (2 sets of CAN signals, 1 channel 100M Ethernet signal, resolver RS422 signal).

• Multi-contact brush, long service life
• Integrated structure design, easy installation
• Support customized requirements
• Support high-speed transmission protocol
• No packet loss, no crosstalk, patented structure design

Product features

• Can transmit current, sensor, control circuit, Ethernet and other signals
• Stable performance, large return loss, small insertion loss, anti-crosstalk
• Unique coating process, long life
• Optional RJ45 network interface
• Compatible with data communication protocol

Typical applications:

Mainly used in bus communication between various encoders, servo motors and various controllers in industrial automation control, such as lithium battery equipment, various high-end intelligent equipment, various laser equipment, etc.

Our advantage:

1）Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.

2）Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

3）Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
