Ingiant customized through hole Ethernet slip ring 2 channels 100M Ethernet + 12 channels power/signal.
|
DHK042-21 |
|||
|
The main parameters |
|||
|
Number of circuits |
21 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

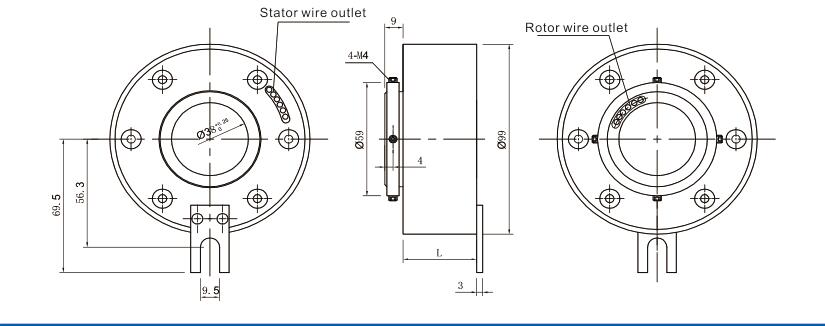

Standard product outline drawing:
Ethernet slip ring – Customized through hole slip ring series
Accept customization, transmit 100/1000M Ethernet signal
DHK042-21 series 100M Ethernet slip ring, customized through hole Ethernet slip ring, inner hole 42mm, 2 channels 100M Ethernet + 12 channels power/signal. Ethernet slip ring is specially designed for 250MHz frequency signal and is used to transmit 100M/1000M Ethernet signal. It has the advantages of stable transmission, no packet loss, no string code, small return loss, small insertion loss, strong anti-interference ability, and support for POE.
Product features
- It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss
- The fiber brush contact structure ensures the product life
- Stable transmission of 2-way 100M Ethernet signal
- Integrated structure design, easy to install
- Protection level IP51-IP68 optional
- Standard models are available and can be customized
- RJ45 male and female connectors are optional
- Use high-quality Ethernet cable
- Maintenance-free
Typical applications:
Industrial machine processing centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotary sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;
Our Advantage
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Product advantage: The through-hole slip ring can fully meet the transmission of power, signal, weak current, large current or high voltage under 360-degree unlimited continuous rotation. The main features are low torque, low electrical noise, low loss and easy maintenance.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
