Ingiant Customized through hole slip ring inner diameter 42mm 4 channels channels power(0-20A)

Short Description:

Ethernet slip ring – Through hole slip ring ID38mm series

Accept customization, transmit 100/1000M Ethernet signal

DHK038-26 through hole Ethernet slip ring, inner diameter 38.1mm, outer diameter 99mm. It can be used to install rotating systems with shaft diameter less than ≤38.1mm, and supports up to 12 power channels, 24 signal channels, and 1 Gigabit Ethernet channel. Gigabit Ethernet slip ring has high-speed transmission characteristics and provides up to 1Gbps communication bandwidth. It is mostly used in high-definition video surveillance systems to transmit high-definition video signals for ball cameras and PTZ cameras, providing an effective solution for 360-degree rotating security monitoring.

Send email to us

Product Detail

Product Tags

DHK042-4-003
The main parameters
Number of circuits	4	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

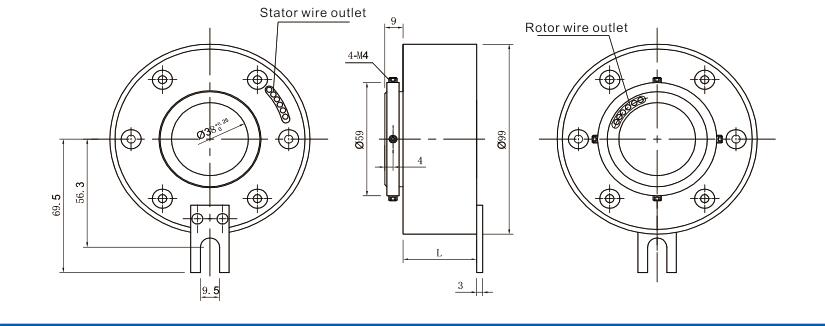

Standard product outline drawing:

Through hole slip ring – customized hole diameter 42mm series

Support customization, standardized product inner diameter: 3-500mm, current:2-1000A

DHK042-4-003 Through hole slip ring customized hole diameter 42mm,4 channels power(0-20A). The brush wire is made of precious metal materials such as silver alloy and gold alloy, and the overall service life of the conductive slip ring is increased through advanced fiber brush bundle contacts.

Through hole slip rings can fully meet the transmission of power, signal, weak current, large current or high voltage under 360-degree unlimited continuous rotation. The main features are low torque, low electrical noise, low loss and easy maintenance.

Product features

Power, signal and data can be integrated into a rotating transmission system without interference
Temperature control signal and thermocouple signal are transmitted at the same time
Fiber brush bundle process ensures reliable contact and low friction coefficient
More reliable all-metal shell protection structure
Integrated design, easy to install
0-20A current, 0~600VAC/VDC voltage optional

Typical applications:

Medical equipment, CNC turntables, CNC machining centers, automation equipment, robotic arms, cable drums, cable reels, packaging machinery, filling equipment, wind turbines, automated robots, fully automatic testing equipment, VR, etc.

Our Advantage

Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Product advantage: The through-hole slip ring can fully meet the transmission of power, signal, weak current, large current or high voltage under 360-degree unlimited continuous rotation. The main features are low torque, low electrical noise, low loss and easy maintenance.
Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
