Ingiant Customized through hole slip rings inner diameter 50mm 14chanels 10A Special square structure design

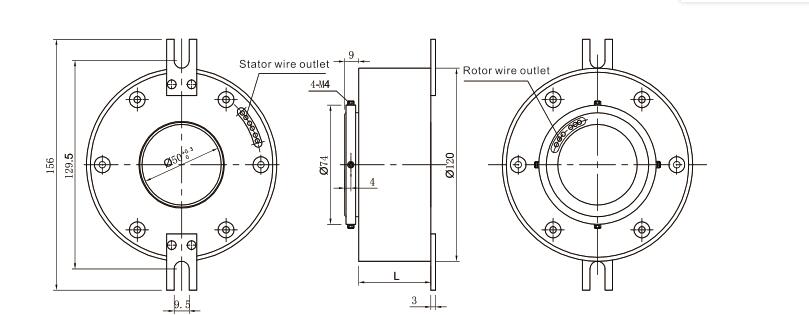

Standard product outline drawing:

Through hole slip ring-Custom slip ring series
Available for Custom, Standard ID 12-400 mm, Current 2-1000A

DHK050-14-10A Customized through hole slip rings with through hole 50mm, OD107mm, suitable for rotating application which requires a through hole ≤50mm.Supports 14 power channels(10A/channel). There are two rows of 8-bit power terminal blocks. Special square appearance structure.

Feature

• Can combine the power, data and signals without interference in one rotary system
• Temperature control signal and thermocouple signal can be combined.
• Advanced multi-point contact brush technology ensures reliable contact with low friction
• Metal housing for better protection
• Integrated structure design, easy installation
• Hole size option for 3~500mm
• Standard current option for 0~20A, Standard voltage option for 0~600VAC/VDC
• Rings option for 0~300

Typical application

• Automatic machines
• Cable reels
• Robotics, rotary sensors, urgent illumination equipment
• Exhibit / display equipment
• Packaging Machinery
• Rotary table
• Medical, Pharmaceutical equipment
• Converting machines
• Capping machines
• Labeling machines
• Filling machine
• Machine tools

Our Advantage

1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance.
2. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
