Ingiant Customized USB slip ring transmit USB3.0 signals and 3A electrical power

Short Description:

USB Slip rings for USB and electrical power/signal transmission

DHS055-25-3A series USB slip ring, solid flange design, 1-channel USB3.0 integral precision conductive slip ring with an outer diameter of 55mm and an integral structure.

Send email to us

Product Detail

Product Tags

DHS055-25-3A
The main parameters
Number of circuits	25	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

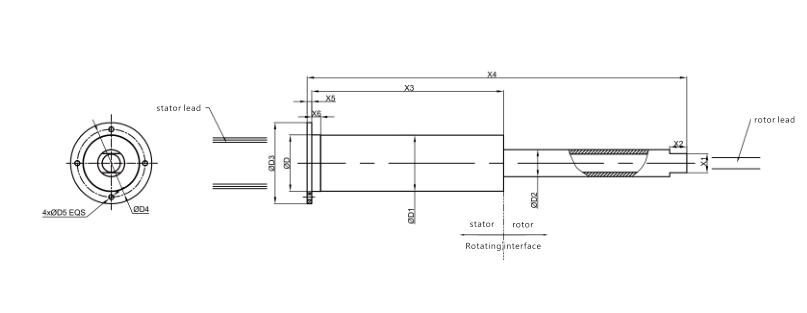

Product drawing:

USB Slip rings for USB and electrical power/signal transmission

DHS055-25-3A series USB slip ring, solid flange design, 1-channel USB3.0 integral precision conductive slip ring with an outer diameter of 55mm and an integral structure.

USB slip ring is specially designed for USB signals and is used to transmit USB2.0 and USB3.0 signals. It has the advantages of stable transmission, no packet loss, no aliasing, small return loss, and low insertion loss.

· USB slip rings can mix electrical power channels and signal channels.

· Up to 8 USB channels can be transmitted simultaneously.

· Integral precision conductive slip ring with all-aluminum alloy structure, providing direct plug-in and pull-out of USB male and female connectors, military plating technology, precious metal + super-hard gold plating, ultra-low BER bit error rate and ultra-high signal-to-noise ratio.

USB slip rings can offer you the following advantages:

Thoughtful, innovative design
Robust housing made of sturdy aluminium
High load capacity
Rotates up to 600 revolutions per minute
Finished with gold-gold contacts
Available in many variants
Standardly in protection class IP51, higher on request

Our advantage:

Product advantage: Low unit price,Large constructive design possibilities,High reliability,Low weight,Low installation space,Easy installation, the hybrid design is space-saving.
Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
Customised advantage: If you are not sure which products are ideal for your challenges, please contact us. These components are extremely flexible and versatile, so use our technical advice to project the optimum slip ring body for your application. Our service team will deal with your request immediately and get back to you as soon as possible.
